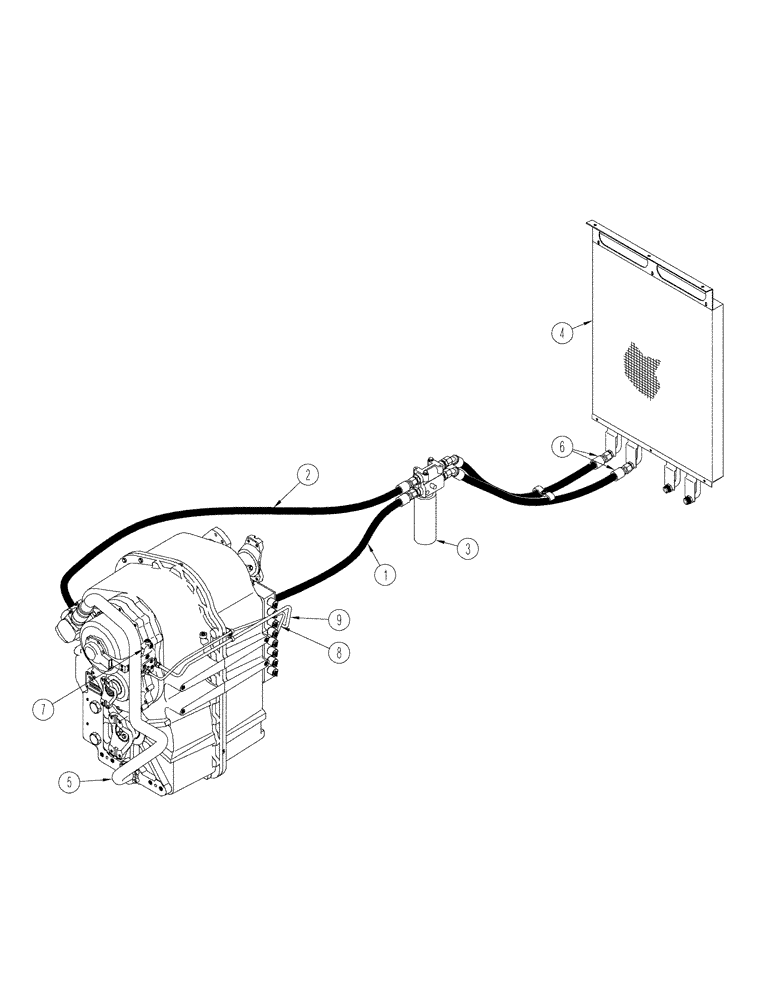

Запчасти Case IH STX275 (01-02[01]) - PICTORIAL INDEX - POWER SHIFT TRANSMISSION AND PTO CLUTCH LUBE WITHOUT ACCUSTEER (00) - PICTORIAL INDEX

1

HOSE Transmission, Regulator Valve Supply, See Figure 06-11 (01)

1шт.

2

HOSE Pump To Filter, See Figure 06-11 (01)

1шт.

3

FILTER Left-Hand, See Figure 08-03

1шт.

4

COOLER Hydraulic Oil, See Figure 08-02

1шт.

5

TUBE Transmission, Pump Supply, See Figure 06-11 (01)

1шт.

6

HOSE Cooler Supply and Outlet, See Figure 08-01

1шт.

7

VALVE ASSY PTO Control, See Figure 06-44

1шт.

8

TUBE PTO Valve, Pressure Supply, See Figure 06-13

1шт.

9

TUBE PTO Valve, Lube Supply, See Figure 06-13

1шт.
