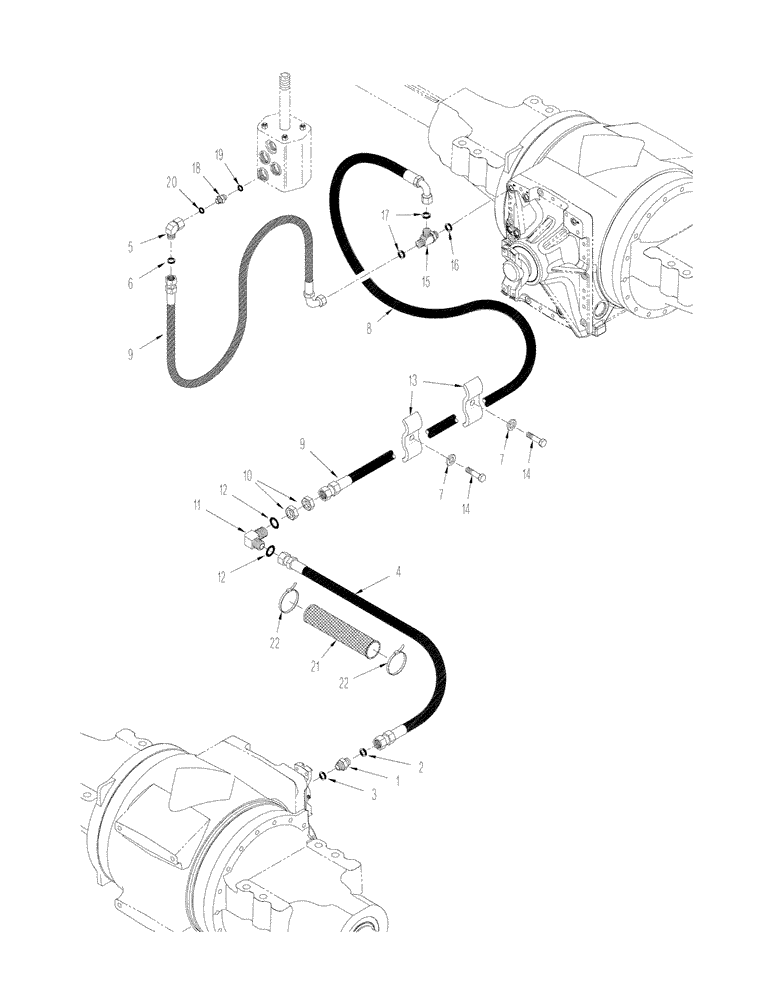

Запчасти Case IH STX275 (07-03[01]) - SERVICE BRAKE CIRCUIT, WITHOUT ACCUSTEER (07) - BRAKES

1

401760A1

VALVE

Check, 13/16 fc sl x 22 or, Inc. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360203A3

HOSE ASSY.

1803 mm (71 in.)

1шт.

5

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

368363A1

HOSE

1615 mm (63-1/2 in.)

1шт.

9

368365A2

HOSE

1370 mm (54 in.)

1шт.

10

701-903

NUT,13/16" - 16

1шт.

11

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

R15257

CLAMP

4шт.

14

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

15

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 16 and 17

1шт.

16

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 19 and 20

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

S120426

TUBE

Protection

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
