(01-03[02]) - PICTORIAL INDEX - STEERING, ARTICULATION WITH ACCUSTEER

Запчасти Case IH STX325 (01-03[02]) - PICTORIAL INDEX - STEERING, ARTICULATION WITH ACCUSTEER (00) - PICTORIAL INDEX

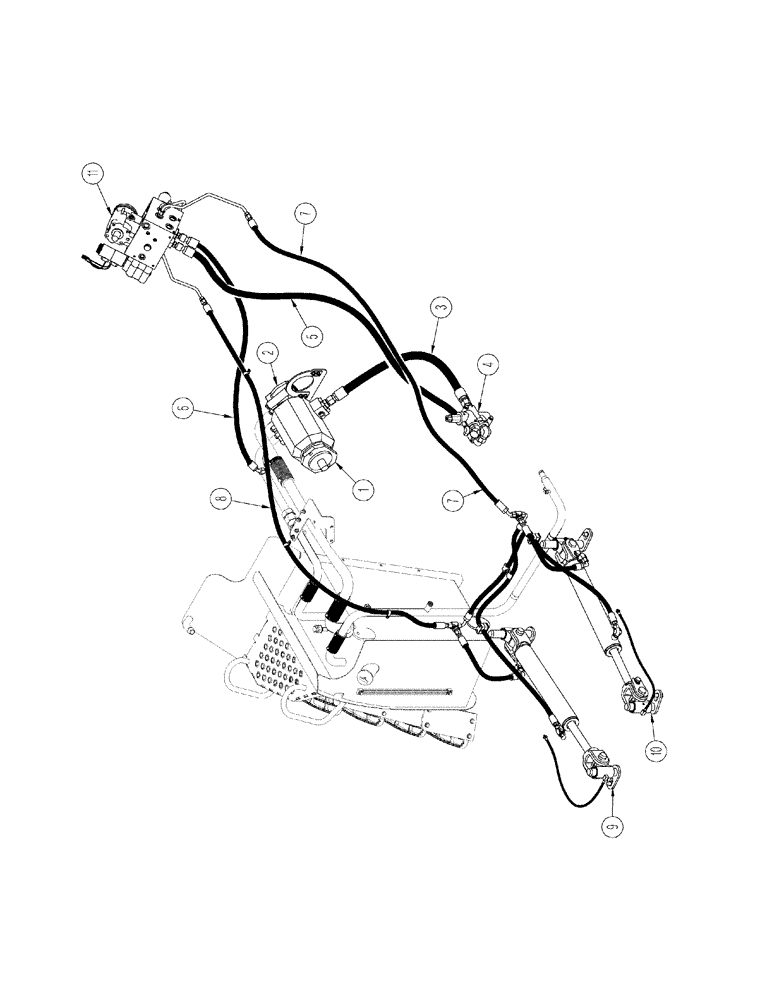

Схема запчастей Case IH STX325 - (01-03[02]) - PICTORIAL INDEX - STEERING, ARTICULATION WITH ACCUSTEER (00) - PICTORIAL INDEX
11
7
4
3
10
7
1
9
6
2
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PUMP Piston, High Output Hydraulics, See Figure 08-21

1шт.

2

PUMP Gear, See Figure 08-22

1шт.

3

HOSE Priority Valve Supply, See Figure 08-19 (02)

1шт.

4

VALVE Priority, High Output Hydraulics, See Figure 08-23

1шт.

5

HOSE Steering Control Supply, See Figure 08-19 (02)

1шт.

6

HOSE Steering Return, See Figure 08-19 (02)

1шт.

7

HOSE Steering Control, To Right-Hand Articulation Cylinder, See Figure 05-01 (02)

1шт.

8

HOSE Steering Control, To Left-Hand Articulation Cylinder, See Figure 05-01 (02)

1шт.

9

CYLINDER Articulation, See Figure 05-02

1шт.

10

CYLINDER Articulation, With Sensor, See Figure 05-02

1шт.

11

VALVE Steering Control, See Figure 05-04 (02)

1шт.
