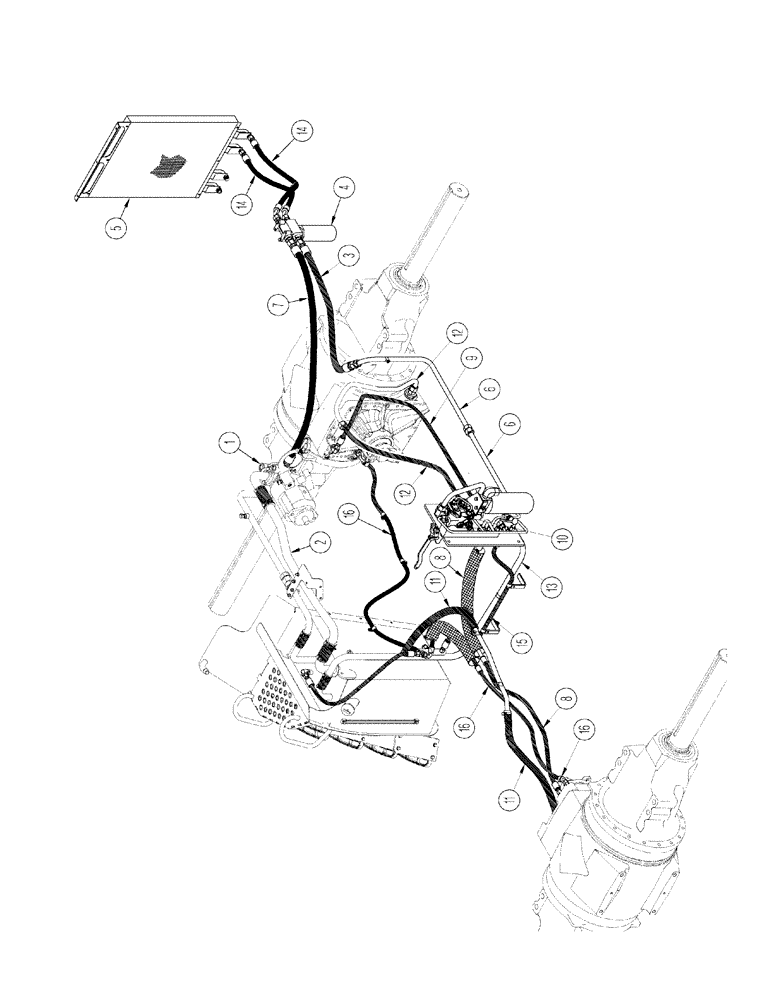

Запчасти Case IH STX325 (01-04[03]) - PICTORIAL INDEX - AXLE LUBE CIRCUIT WITH ACCUSTEER, BSN JEE0102001 (00) - PICTORIAL INDEX

1

PUMP Gear, See Figure 08-22

1шт.

2

TUBE Gear Pump Supply, See Figure 08-19 (02)

1шт.

3

HOSE Filter To Regulator Valve, See Figures 07-04 (02), 07-05 (02)

1шт.

4

FILTER Right-Hand, See Figure 08-03

1шт.

5

COOLER Hydraulic Oil, See Figure 08-02

1шт.

6

TUBE Filter To Regulator Valve, See Figures 07-04 (02), 07-05 (02)

1шт.

7

HOSE Gear Pump To Filter, See Figures 08-14, 08-15, 08-19 (02)

1шт.

8

HOSE Regulator Valve, Supply To Rear Axle, See Figures 07-04 (02), 07-05 (02)

1шт.

9

HOSE Regulator Valve, Supply To Front Axle, See Figures 07-04 (02), 07-05 (02)

1шт.

10

VALVE Regulator, See Figure 08-39

1шт.

11

HOSE Rear Axle, Return To Tank, See Figure 08-05 (01)

1шт.

12

HOSE Front Axle, Return To Tank, See Figure 08-05 (01)

1шт.

13

TUBE Return, See Figure 05-01 (02)

1шт.

14

HOSE Filter To Cooler, See Figure 08-01

1шт.

15

HOSE Tow Valve, Return To Tank, See Figure 07-05 (02)

1шт.

16

HOSE Vent, See Figure 08-07 (01)

1шт.
