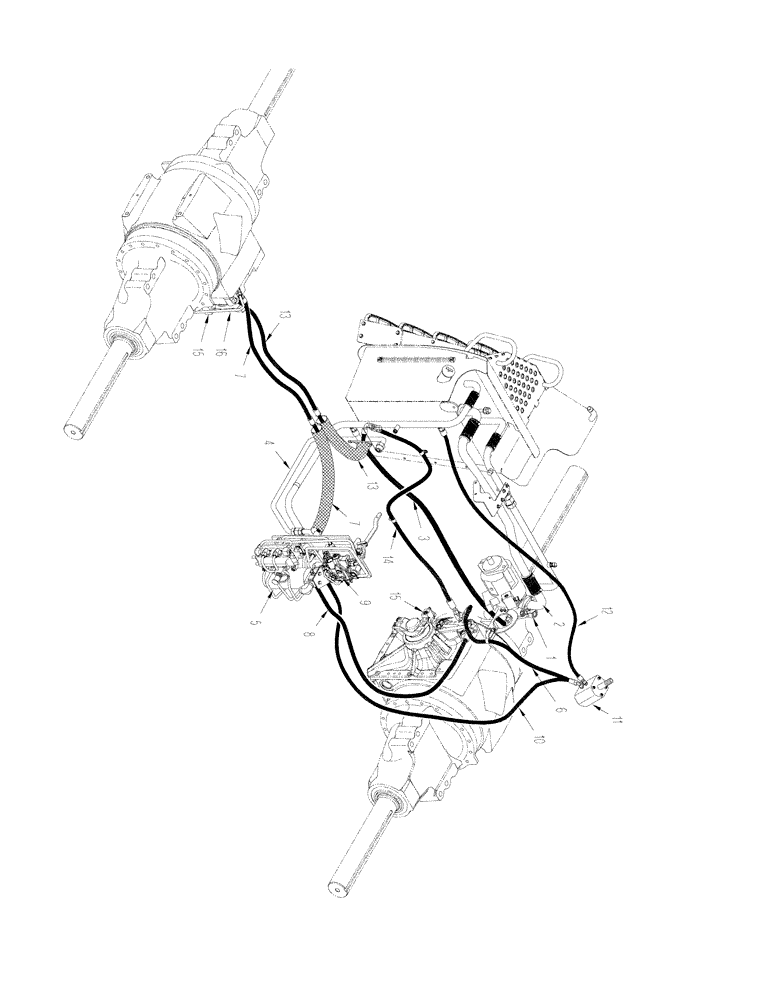

Запчасти Case IH STX325 (01-05[04]) - PICTORIAL INDEX - CHARGE PUMP AND BRAKE CIRCUIT WITH ACCUSTEER, ASN JEE0102001 (00) - PICTORIAL INDEX

1

PUMP Gear, See Figure 08-22

1шт.

2

TUBE Gear Pump Supply, See Figure 08-15

1шт.

3

HOSE Gear Pump, To Charge Pressure Tube, See Figure 08-15

1шт.

4

TUBE Charge Pressure, To Filter, See Figure 08-09

1шт.

5

FILTER, See Figure 08-04

1шт.

6

HOSE Service Brake Line, See Figure 07-03 (02)

1шт.

7

HOSE Tow Valve Supply, To Rear Axle Park Brake, See Figure 07-04 (04)

1шт.

8

HOSE Tow Valve Supply, To Front Axle Park Brake, See Figure07-04 (04)

1шт.

9

VALVE Regulator, See Figure 08-39

1шт.

10

HOSE Regulator Output, To Brake Valve, See Figure 07-04 (04)

1шт.

11

VALVE Brake, See Figure 07-02

1шт.

12

HOSE Brake Valve, Return To Tank, See Figure 07-04 (04)

1шт.

13

HOSE Service Brake, To Rear Axle, See Figure 07-03 (02)

1шт.

14

HOSE Service Brake, To Front Axle, See Figure 07-03 (02)

1шт.

15

SOLENOID Differential Lock, Used In Differential Lock Applications, See Figure 07-05 (04)

1шт.

16

TUBE Differential Lock, Used In Differential Lock Applications, See Figure 07-05 (04)

1шт.
