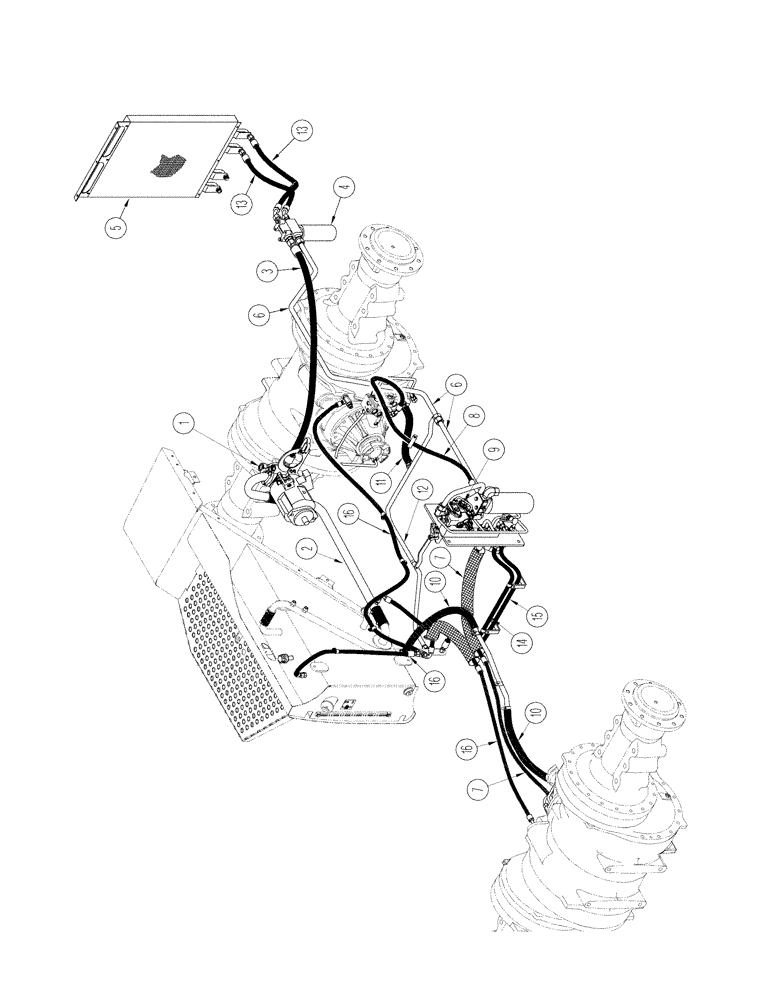

(01-08[01]) - PICTORIAL INDEX - AXLE LUBRICATION CIRCUIT, 500 SERIES AXLE, QUADTRAC TRACTOR, BSN JEE0102001

Запчасти Case IH STX425 (01-08[01]) - PICTORIAL INDEX - AXLE LUBRICATION CIRCUIT, 500 SERIES AXLE, QUADTRAC TRACTOR, BSN JEE0102001 (00) - PICTORIAL INDEX

Схема запчастей Case IH STX425 - (01-08[01]) - PICTORIAL INDEX - AXLE LUBRICATION CIRCUIT, 500 SERIES AXLE, QUADTRAC TRACTOR, BSN JEE0102001 (00) - PICTORIAL INDEX
13
11
13
16
7
8
3
4
10
10
15
9
5
6
16
14
1
6
2
16
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Pump, Gear, See Figure 08-27

1шт.

2

Tube, Gear Pump Supply, See Figure 08-20, 08-24

1шт.

3

Hose, Gear Pump To Filter, See Figure 08-20, 08-24

1шт.

4

Filter, Right-Hand, See Figure 08-03

1шт.

5

Cooler, Hydraulic Oil, See Figure 08-02

1шт.

6

Tube, Filter To Regulator Valve, See Figure 08-09

1шт.

7

Hose, Regulator Supply To Rear Axle, See Figure 08-09

1шт.

8

Hose, Regulator Valve Supply To Front Axle, See Figure 08-09

1шт.

9

Valve, Regulator, See Figure 08-13

1шт.

10

Hose, Rear Axle Return To Tank, See Figure 08-09

1шт.

11

Hose, Front Axle Return to Tank, See Figure 08-09

1шт.

12

Tube, Return, See Figure 08-09

1шт.

13

Hose, Filter To Cooler, See Figure 08-01

1шт.

14

Hose, Tow Valve Supply, See Figure 07-10, 07-11

1шт.

15

Hose, Regulator Valve Return To Tank, See Figure 08-09

1шт.

16

Hose, Vent, See Figure 08-09

1шт.
