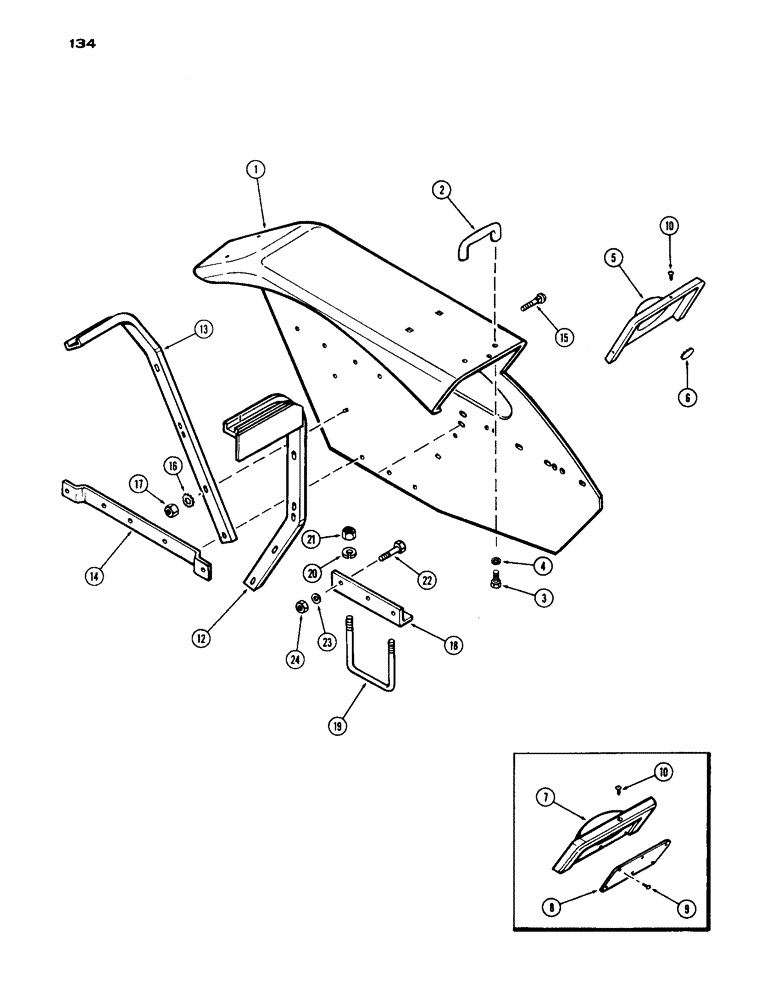

Запчасти Case IH 1030 (134) - FENDERS, GENERAL PURPOSE MODELS (09) - CHASSIS

1

A33196

FENDER - right hand side

1шт.

1

A33197

FENDER - left hand side

1шт.

2

A23725

HANDLE

- mounting

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Handle Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A57727

PANEL

- cultivator lamp mounting (1st used trac. ser. no. 8344384)

2шт.

6

205-67

HOLE PLUG BUTTON,2"

PLUG - lamp panel ( button type) (1st used trac. ser. no. 8344384) 2"

2шт.

7

A32919

PANEL

- cultivator lamp mounting (Order A57727) (used prior to trac. ser. no. 8344384)

2шт.

8

A33040

COVER - cultivator lamp panel (used prior to trac. ser. no. 8344384)

2шт.

9

187-1108

SCREW - cover (#8 x 3/8" sheet metal)

10шт.

10

187-328

SCREW - panel (#10 x 3/8" self tapping)

6шт.

12

A32926

BRACE - right hand fender, front

1шт.

12

A32927

BRACE - left hand fender, front

1шт.

13

A32932

BRACE - right hand fender, rear

1шт.

13

A32933

BRACE - left hand fender, rear

1шт.

14

A33195

PLATE - fuel tank reinforcement

2шт.

15

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Fender brace Short NK, 5/16"-18 x 1 1/2"

8шт.

15

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Fender brace

4шт.

16

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

12шт.

17

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

12шт.

18

A57227

SUPPORT - fender (7-1/4" "U" bolt ctrs.)

2шт.

18

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

SUPPORT - fender (7" "U" bolt hole centers) (Order 1-A57227 & 1-A57048)

2шт.

19

A57048

U-BOLT

"U" BOLT - fender mtg. (7-1/4" bolt ctrs.) (used w/A57227)

2шт.

19

A7069

ARM

"U" BOLT - fender mtg. (7" bolt ctrs.) (used w/A32936)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

4шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Support Hex, 3/8"-16 x 2", G5

4шт.

23

92-6

LOCK WASHER,3/8"

12шт.

24

25-106

NUT,3/8"-16, G5

-(3/8" N.C. hex.)

12шт.
