(8-206) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB, PRIOR TO P.I.N.11039983

Запчасти Case IH 1194 (8-206) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB, PRIOR TO P.I.N.11039983 (08) - HYDRAULICS

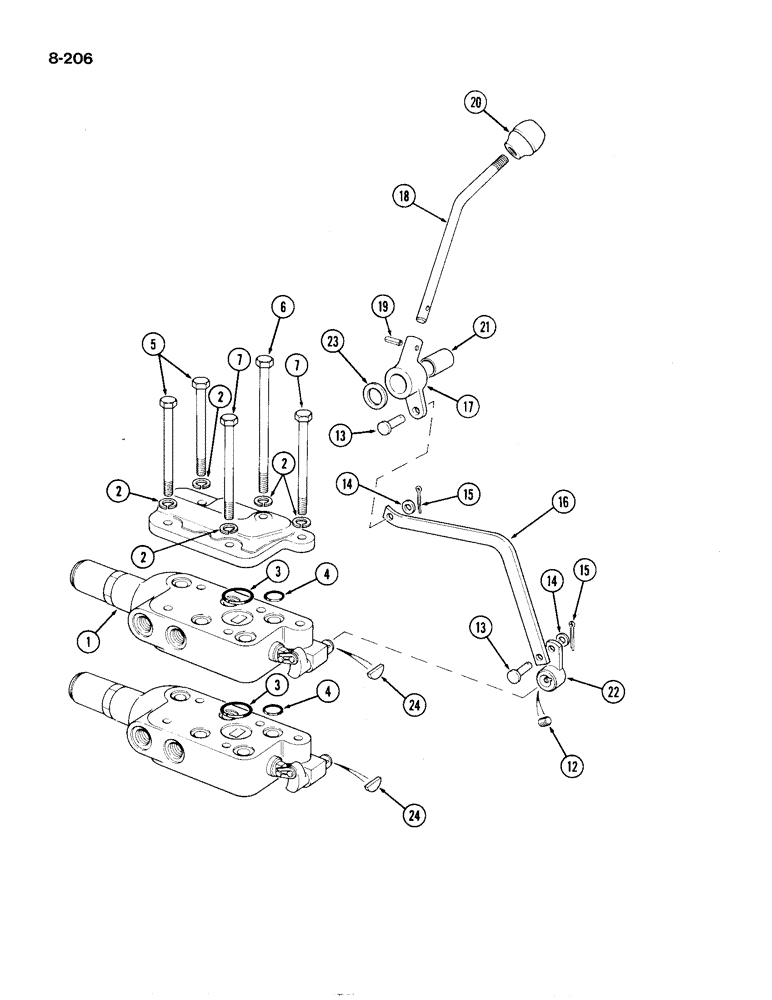

Схема запчастей Case IH 1194 - (8-206) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB, PRIOR TO P.I.N.11039983 (08) - HYDRAULICS
14
24
24
14
3
6
17
4
18
13
2
1
22
12
16
2
4
21
23
19
5
15
15
20
2
7
2
13
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

UK5024

VALVE

ASSEMBLY - detented, See Figure 8-220

1шт.

UK5025

VALVE

ASSEMBLY - spring centered, See Figure 8-220

1шт.

UK6635

KIT

FITTINGS, CONTROL AND COUPLING UNIT - second valve, Includes: Ref. 2 - 24

1шт.

2

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) internal diameter

3шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch (18 mm) internal diameter

15шт.

5

K600513

BOLT

- 3/8 UNC x 6 inch

2шт.

6

K600514

BOLT

- 3/8 UNC x 6-1/4 inch

1шт.

7

K600516

BOLT

- 3/8 UNC x 4-3/4 inch

2шт.

12

K616302

SET SCREW

BOLT - 5/16 UNF x 3/8 inch

1шт.

13

K625965

PIN

- clevis, 3/4 x 1/4 inch

2шт.

14

K19470

WASHER

- 1/4 inch (6 mm)

2шт.

15

K19524

PIN

- cotter, 1/16 inch

2шт.

16

K203491

LINK

ARM - link, second valve

1шт.

17

K205227

COLLAR

BOSS - pivot

1шт.

18

K260787

LEVER

- hand, control (replaces K205229)

1шт.

19

K623933

SPRING

PIN - spring, 1/8 x 5/8 inch

1шт.

20

K950493

KNOB

- lever

1шт.

21

K621377

BUSHING

- pivot

1шт.

22

K203197

LEVER

- second valve

1шт.

23

K19475

WASHER

- 5/8 inch (16 mm)

2шт.

24

K19602

KEY

- Woodruff No. 404

1шт.

REF

INSTRUCTION

TUBES AND COUPLINGS, See Figure 8-216

1шт.
