Запчасти Case IH 1290 (S-03) - SWITCHES, FUSEBOX, HORN AND TRAILER SOCKET (06) - ELECTRICAL SYSTEMS

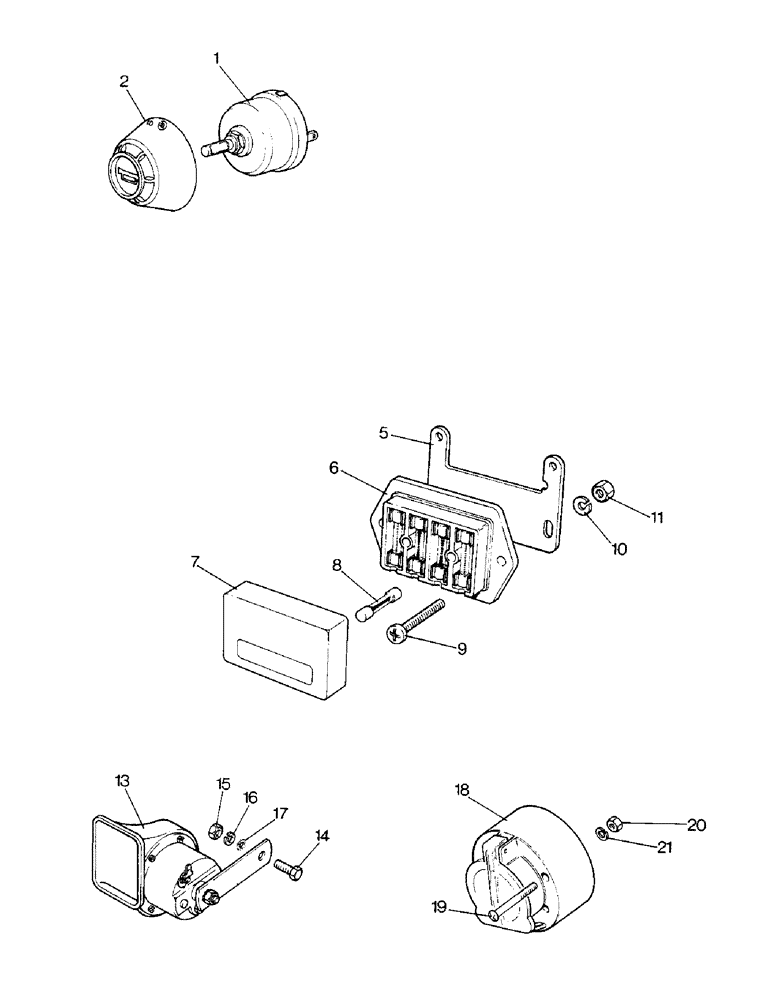

Схема запчастей Case IH 1290 - (S-03) - SWITCHES, FUSEBOX, HORN AND TRAILER SOCKET (06) - ELECTRICAL SYSTEMS
21
6
18
5
9
20
1
7
10
13
14
11
8
16
2
15
19
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K300657

SWITCH

- lights and horn (Lucas 54349813)

1шт.

2

K300792

KNOB

- lighting switch

1шт.

5

K300675

BRACKET

- fuse box support, Includes Ref: 6 - 8

1шт.

6

K204610

BOX, FUSE

BOX ASSEMBLY - fuse

1шт.

7

K261009

COVER

- fuse box

1шт.

8

K947431

FUSE

- 35 ampere

2шт.

8

K904459

FUSE

- 25 ampere

1шт.

8

K951395

FUSE

- 15 ampere

1шт.

9

K614945

SCREW

- No. 10 UNF x 5/8 inch

4шт.

10

K626340

RING

WASHER - lock, 3/16 inch

4шт.

11

K617080

NUT

- No. 10 UNF

4шт.

13

K950098

HORN

- warning sound

1шт.

14

K602733

SCREW

BOLT - 1/4 UNC x 1/2 inch

1шт.

15

K607043

NUT

- 1/4 inch UNC

1шт.

16

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

17

K11524

LOCK WASHER

- lock, 1/4 inch

1шт.

18

K303725

SOCKET/RECEPTACLE

SOCKET - trailer, electrical

1шт.

19

K652466

SCREW

- M5 x 25 MM

3шт.

20

K651525

NUT

- M5

3шт.

21

K651846

WASHER, LOCK

WASHER - lock, 5 MM

3шт.
