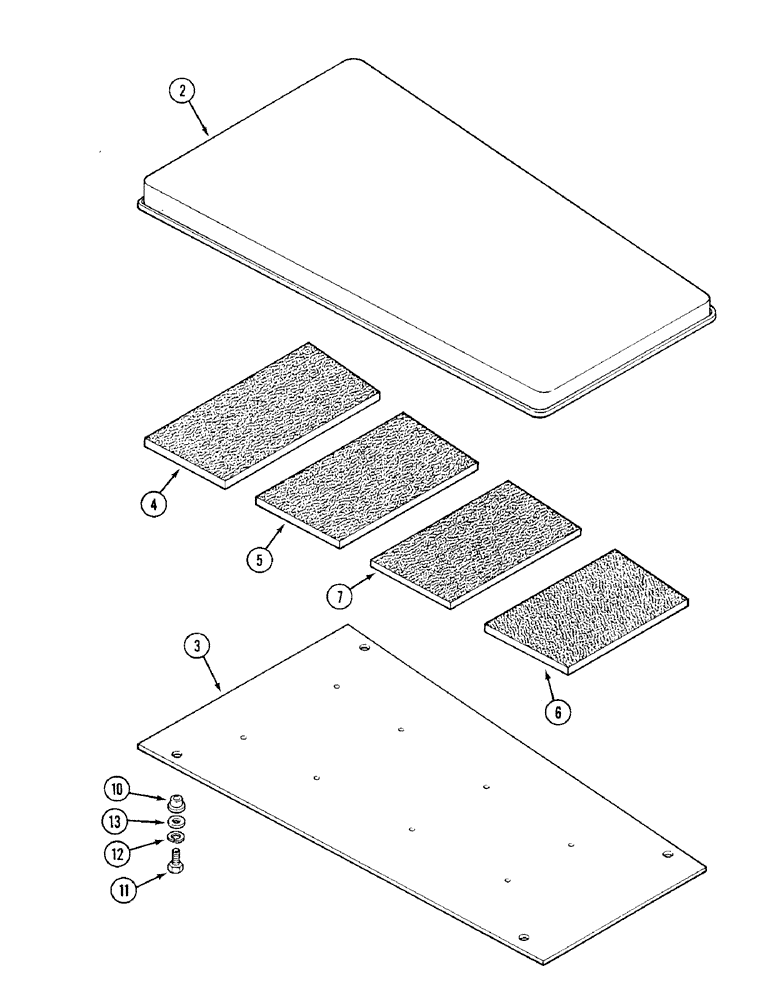

Запчасти Case IH 1394 (9-462) - CANOPY, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

A164851

COVER

CANOPY ASSEMBLY, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

CANOPY ASSEMBLY, Includes: Ref. 3 - 7

1шт.

3

A169131

LINING

HEADLINER - canopy

1шт.

4

A169130

FOAM

RUBBER - canopy, rear

1шт.

5

A169129

FOAM

RUBBER - canopy, rear center

1шт.

6

A169127

FOAM

RUBBER - canopy, front

1шт.

7

A169128

FOAM

RUBBER - canopy, front center

1шт.

10

A169126

MOUNTING PARTS

MOUNT - isolation

4шт.

11

113-292

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex., 3/8 NC x 1-1/2 inch (Order 113-209)

4шт.

12

192-43

WASHER,3/8"

LOCK, 3/8"

4шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.
