(D09-1) - SHAFTS AND GEARS FOR RANGE GEARBOX, POWER-SHIFT

Запчасти Case IH 1490 (D09-1) - SHAFTS AND GEARS FOR RANGE GEARBOX, POWER-SHIFT (03) - POWER TRAIN

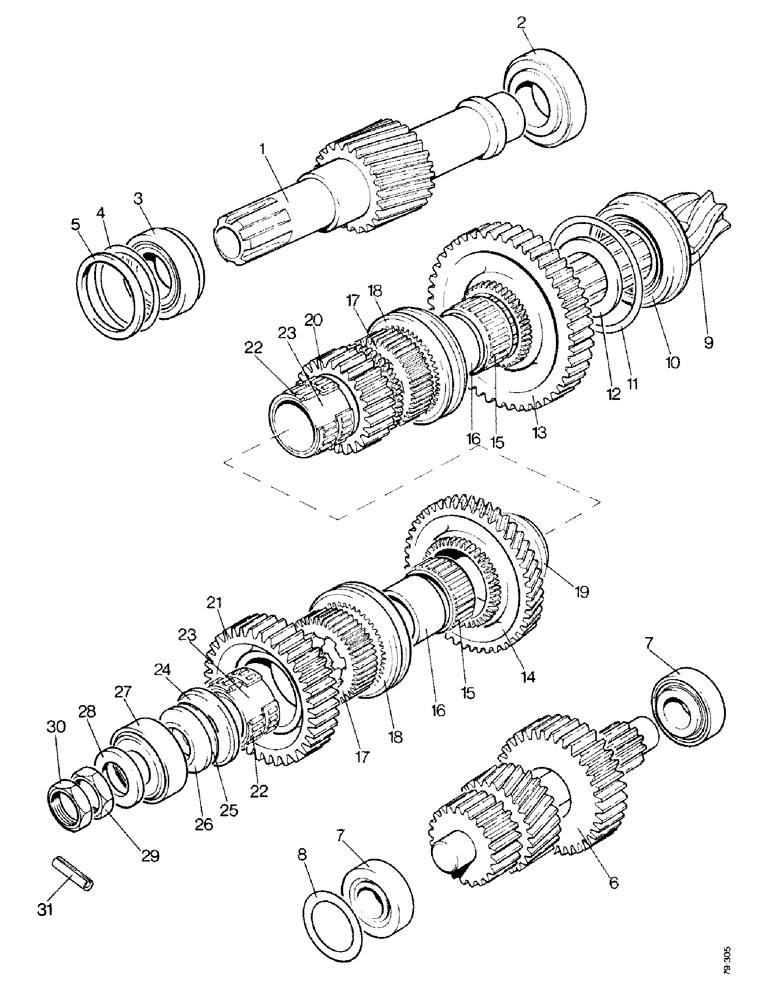

Схема запчастей Case IH 1490 - (D09-1) - SHAFTS AND GEARS FOR RANGE GEARBOX, POWER-SHIFT (03) - POWER TRAIN
7
15
7
27
31
29
28
16
24
20
1
16
4
21
18
23
5
22
6
8
17
22
23
3
25
2
10
17
26
11
15
9
30
13
12
19
14
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K948489

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K620117

ROLLER

TAPER ROLLER BEARING

1шт.

3

K620148

BEARING

TAPER ROLLER BEARING

1шт.

4

K626254

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

4

K626255

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

4

K626256

SHIM,.015" Thk

(0.381 mm) .015" Thk

1шт.

4

K626257

SHIM,.030" Thk

(0.762 mm) .030" Thk

1шт.

5

K940603

BUSHING

SPACER

1шт.

6

K928317

SHAFT

LAYSHAFT

1шт.

7

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

TAPER ROLLER BEARING

2шт.

8

K928485

SHIM

- 0.002" (0.0508 mm)

1шт.

8

K928486

SHIM

- 0.005" (0.127 mm)

1шт.

8

K928487

SHIM

- 0.015" (0.381 mm)

1шт.

8

K928488

SHIM

- 0.030" (0.762 mm)

1шт.

9

K962894

GEAR-SET

BEVEL PINION AND SPIRAL GEAR

1шт.

10

K620158

TAPERED BEARING

TAPER ROLLER BEARING

1шт.

11

K626983

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

11

K626984

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

11

K626985

SHIM

- 0.015" (0.381 mm)

1шт.

12

K928637

COLLAR

1шт.

13

K916877

GEAR

- 46 teeth, first range

1шт.

14

K928319

GEAR

- 43 teeth, reverse range

1шт.

15

K620081

NEEDLE BEARING

NEEDLE ROLLER BEARING

2шт.

16

K917103

BUSHING

BEARING BUSHING - short

2шт.

17

K928636

GEAR

FIXED DOG CLUTCH

2шт.

18

K917109

GEAR

SLIDING DOG CLUTCH

2шт.

19

K928637

COLLAR

1шт.

20

K916879

GEAR

- 24 teeth third range

1шт.

21

K928634

GEAR

- 36 teeth, second range

1шт.

22

K620080

NEEDLE BEARING

NEEDLE ROLLER BEARING

4шт.

23

K917104

BUSHING

BEARING BUSHING - long

2шт.

24

K917106

COLLAR

1шт.

25

K943058

SHIM

- 0.002" (0.0508 mm)

1шт.

25

K943059

SHIM

- 0.005" (0.127 mm)

1шт.

25

K943060

SHIM

- 0.015" (0.381 mm)

1шт.

25

K943061

SHIM

- 0.030" (0.762 mm)

1шт.

26

K928641

BUSHING

SPACER

1шт.

27

K620061

BEARING, ROLLER

TAPER ROLLER BEARING

1шт.

28

K14687

WASHER

- 1-1/8" (28.575 mm)

1шт.

29

K623317

LOCK NUT

- 1-1/8 BSF, left-hand

1шт.

30

K622805

LOCK NUT

LOCKNUT - 1-1/8 BSF, left-hand

1шт.

31

K623885

PIN

- 3/16 x 1-1/2" (4.762 x 38.1 mm)

1шт.
