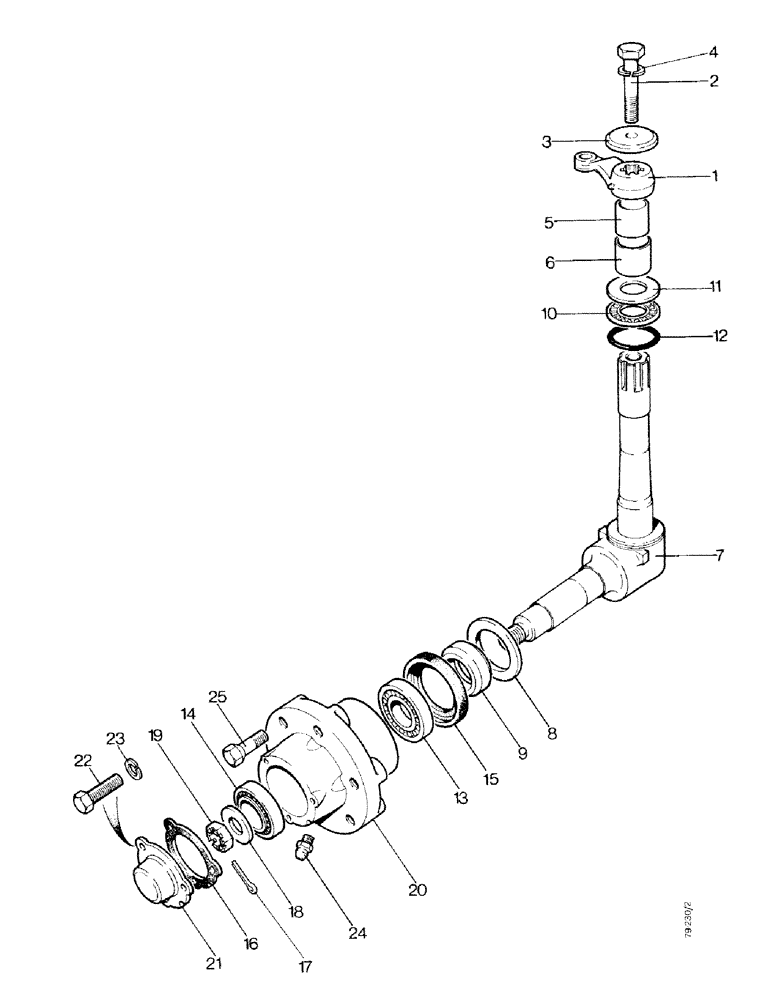

Запчасти Case IH 1490 (G01-1) - STUB AXLES AND FRONT HUBS, 2 WHEEL DRIVE (04) - FRONT AXLE

1

K942943

LEVER

STEERING LEVER - 56 to 80" (1422.4 to 2032.0 mm) track, transverse steering cylinder (Low profile special)

2шт.

1

K204346

LEVER

STEERING LEVER - 60 to 88" (1524.0 to 2235.2 mm) track, transverse steering cylinder

2шт.

1

K918932

LEVER

STEERING LEVER - left-hand, side mounted cylinder, not North America

1шт.

1

K918933

LEVER

STEERING LEVER - right-hand, side mounted cylinder, not North America

1шт.

2

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8 UNC x 3-1/4"

2шт.

3

K15595

WASHER

- 5/8" (15.875 mm) special

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

K621331

BUSHING

- upper, beam extension

2шт.

6

K621367

BUSHING

- lower, beam extension

2шт.

7

K962019

STEERING KNUCKLE

STUB AXLE ASSEMBLY - standard clearance axle

2шт.

7

K965838

SHAFT

STUB AXLE ASSEMBLY - Low profile special, Includes Ref. 8 and 9

2шт.

8

K910429

SPACER

SEAL - dirt

1шт.

9

K910428

RING RACE

SLEEVE - oil seal

1шт.

10

K962325

SHAFT

BEARING - thrust

2шт.

11

K626859

BEARING WASHER,44.5mm ID x 63.25mm OD x 1.6mm Thk

WASHER - thrust bearing

4шт.

12

K24764

O-RING

- 2-5/8" (66.675 mm) internal diameter

2шт.

K962986

SEAL

BEARING AND SEAL KIT - stub axle, Includes Ref. 13 - 17

2шт.

13

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING - inner (Order 1-A29063 and 1-B17220)

1шт.

14

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

- outer

1шт.

15

A27130

OIL SEAL

- oil

1шт.

16

K15344

GASKET,0.25mm Thk

- hub cap

1шт.

17

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32 x 1" (3.969 x 25.4 mm)

1шт.

18

K626673

WASHER

- 3/4" (19.05 mm) special

2шт.

19

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

- 3/4 UNF (19.05 mm)

2шт.

20

K916377

HUB

- front

2шт.

21

K908913

CAP

- hub

2шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SETSCREW - 5/16"

6шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

25

K600875

BOLT

WHEEL BOLT - 1/2 UNC x 1-7/8"

12шт.
