(D08-1) - SHAFTS AND GEARS - RANGE GEARBOX, POWER SHIFT MODEL

Запчасти Case IH 1690 (D08-1) - SHAFTS AND GEARS - RANGE GEARBOX, POWER SHIFT MODEL (03) - POWER TRAIN

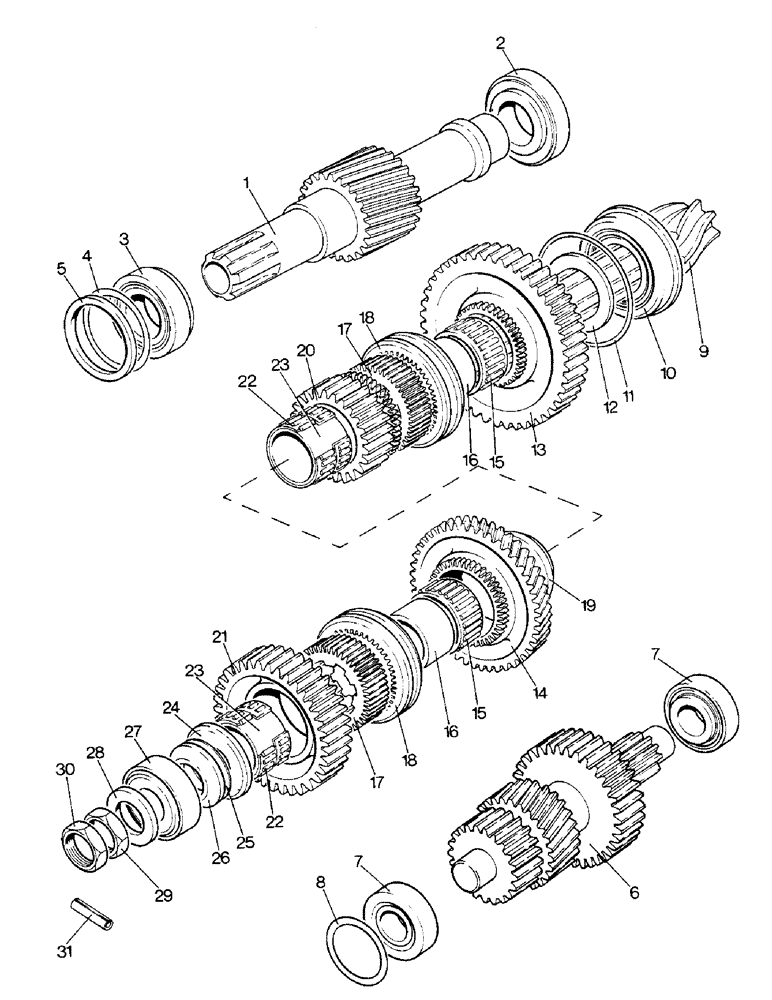

Схема запчастей Case IH 1690 - (D08-1) - SHAFTS AND GEARS - RANGE GEARBOX, POWER SHIFT MODEL (03) - POWER TRAIN
31
27
13
19
24
16
1
6
17
7
9
14
10
25
15
7
8
15
16
18
4
20
11
18
22
3
5
23
12
26
22
29
30
2
17
28
23
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K948489

DRIVE SHAFT

DRIVESHAFT - range

1шт.

2

K620117

ROLLER

BEARING - taper

1шт.

3

K620148

BEARING

ROLLER BEARING - taper

1шт.

4

K626254

SHIM,.002" Thk

1шт.

4

K626255

SHIM,.005" Thk

1шт.

4

K626256

SHIM,.015" Thk

1шт.

4

K626257

SHIM,.030" Thk

1шт.

5

K940603

BUSHING

SPACER - bearing

1шт.

6

K948493

SHAFT

IDLER SHAFT - range

1шт.

7

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

ROLLER BEARING - taper

2шт.

8

K928485

SHIM

- 0.002"

1шт.

8

K928486

SHIM

- 0.005"

1шт.

8

K928487

SHIM

- 0.015"

1шт.

8

K928488

SHIM

- 0.030"

1шт.

9

K965800

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - range

1шт.

10

K620158

TAPERED BEARING

ROLLER BEARING - taper

1шт.

11

K626983

SHIM,.002" Thk

1шт.

11

K626984

SHIM,.005" Thk

1шт.

11

K626985

SHIM

- 0.015"

1шт.

11

K626986

SHIM,.030" Thk

1шт.

12

K928637

COLLAR

- gear

1шт.

13

K948492

GEAR

- 38 teeth, first range

1шт.

14

K928319

GEAR

- 43 teeth, reverse range

1шт.

15

K620081

NEEDLE BEARING

BEARING - needle roller

2шт.

16

K917103

BUSHING

BEARING BUSHING - shaft

2шт.

17

K928636

GEAR

CLUTCH - fixed dog

2шт.

18

K917109

GEAR

CLUTCH - sliding dog

2шт.

19

K928637

COLLAR

- gear

1шт.

20

K948491

GEAR

- 22 teeth, third range

1шт.

21

K948490

GEAR

- 30 teeth, second range

1шт.

22

K620080

NEEDLE BEARING

BEARING - needle roller

4шт.

23

K917104

BUSHING

BEARING BUSHING - long

2шт.

24

K917106

COLLAR

- gear

1шт.

25

K943058

SHIM

- 0.002"

1шт.

25

K943059

SHIM

- 0.005"

1шт.

25

K943060

SHIM

- 0.015"

1шт.

25

K943061

SHIM

- 0.030"

1шт.

26

K928641

BUSHING

SPACER - bearing

1шт.

27

K620061

BEARING, ROLLER

BEARING - taper roller

1шт.

28

K14687

WASHER

- 1-1/8"

1шт.

29

K623317

LOCK NUT

- 1-1/8 BSF, left hand

1шт.

30

K622805

LOCK NUT

LOCKNUT - 1-1/8 BSF, left hand

1шт.

31

K623885

PIN

- roll, 3/16 x 1-1/2"

1шт.
