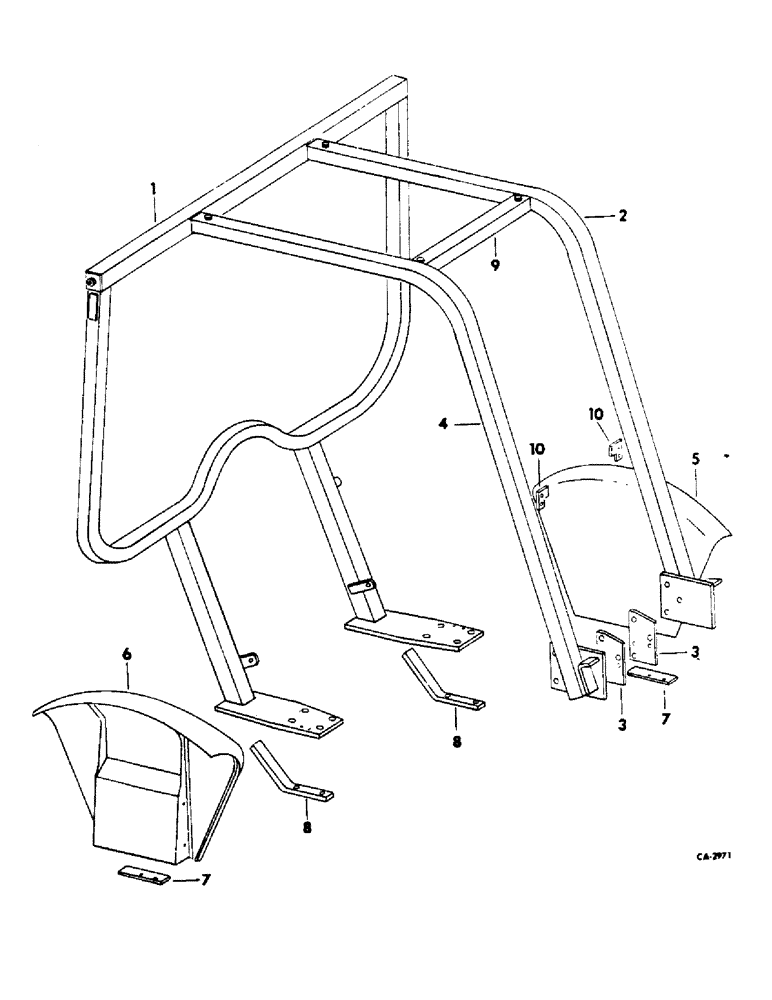

Запчасти Case IH 2544 (N-17) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME, INTERNATIONAL TRACTORS Accessories & Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame 530357R91, consists of reference nos. 1 - 4 and 7 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, rear, not serviced separately, order attachment, 530357R91

1шт.

21434

TYRE/TIRE

NUT, 5/8-11 C-Z hex.

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

2шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

5/8-11 x 8-7/8 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

NSS

NOT SOLD SEPARAT

LEG ASSY, front LH, not serviced separately, order attachment, 530357R91

1шт.

21449

SCREW, 3/4-10 x 4 C-Z hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

528273R1

PLATE, spacer, for tractors without side-mounted mower

1шт.

4

NSS

NOT SOLD SEPARAT

LEG ASSY, front RH, not serviced separately, order attachment 530357R91

1шт.

21449

SCREW, 3/4-10 x 4 C-Z hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

5

NSS

NOT SOLD SEPARAT

FENDER ASSY, LH, refer to fenders listing, section A

1шт.

6

NSS

NOT SOLD SEPARAT

FENDER ASSY, RH, refer to fenders listing, section A

1шт.

7

536227R1

SPACER, fender mounting

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

4шт.

8

NSS

NOT SOLD SEPARAT

PLATE, bottom, not serviced separately, order attachment, 530357R91

1шт.

9

NSS

NOT SOLD SEPARAT

BAR, front cross, not serviced separately, order attachment, 530357R91

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

4шт.

10

530365R1

BRACKET, bridge mounting

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

529458R1

SAFETY BELT

SAFETY BELT

1шт.

529459R1

FASTENER

hook nylon tape

2шт.

529460R1

FASTENER, pile nylon tape

2шт.

456939

NUT,7/16"-20, G8

7/16-20 hex.

2шт.

80305R1

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 8

SCREW, 7/16-20 x 1-1/4 PHC hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Tractors w/S/N 14690 5/8"

4шт.
