(1-10[1]) - PRE-COMBUSTION AND HOLDER

Запчасти Case IH 276 (1-10[1]) - PRE-COMBUSTION AND HOLDER (02) - ENGINE

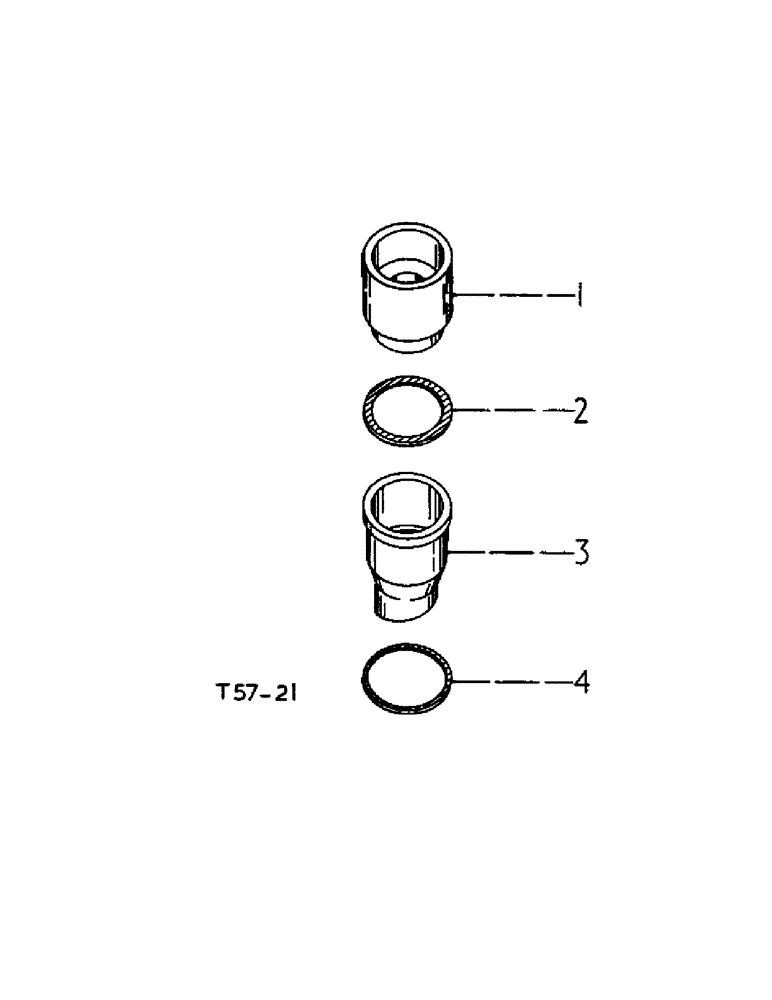

Схема запчастей Case IH 276 - (1-10[1]) - PRE-COMBUSTION AND HOLDER (02) - ENGINE
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ref

Part No.

English

1шт.

1

708314R1

CHAMBER

HOLDER, pre-combustion chamber

4шт.

2

710328R3

GASKET

pre-combustion chamber-upper

4шт.

3

3045523R1

CHAMBER

pre-combustion

4шт.

4

710383R1

GASKET

pre-combustion chamber-lower

4шт.

Выбрано товаров: 5
