(9-048) - CAB, ROOF HATCH SEAL SERVICE KIT

Запчасти Case IH 3230 (9-048) - CAB, ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS

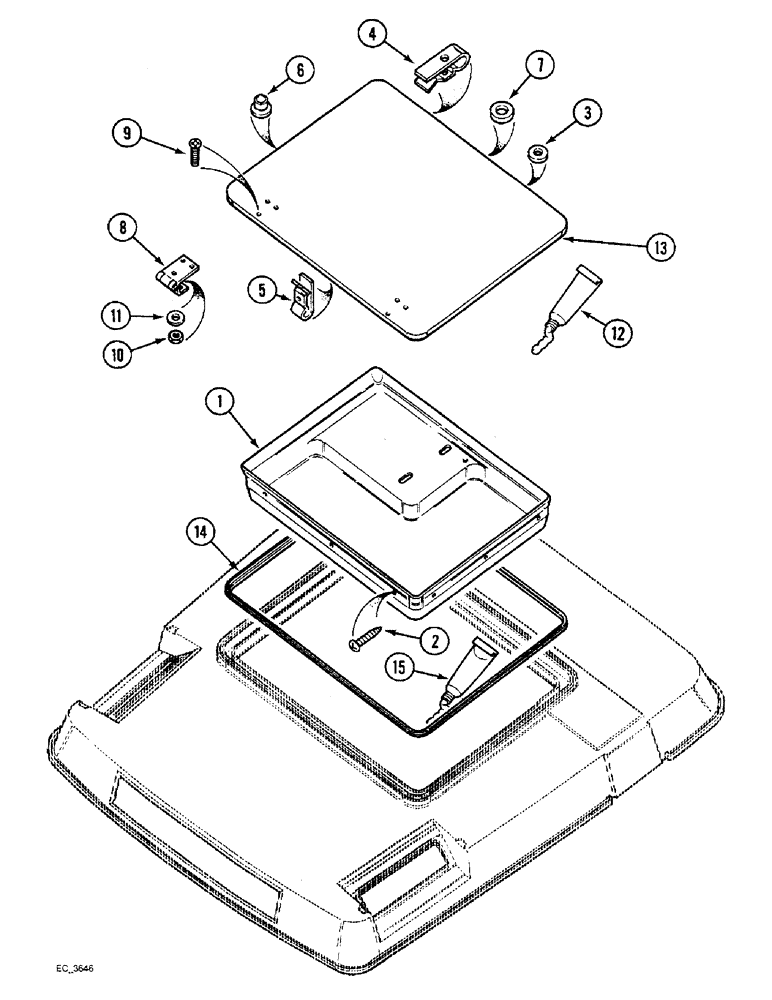

Схема запчастей Case IH 3230 - (9-048) - CAB, ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS
3
8
9
14
1
7
13
10
4
11
6
5
2
12
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

133071A1

HATCH, ASSY.

HATCH ASSEMBLY roof, Includes Ref. 1 - 15

1шт.

133072A1

HATCH

ASSEMBLY roof, Includes Ref. 1 - 13

1шт.

1

133001A1

ROOF LINING

LINING roof hatch

1шт.

2

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

19шт.

3

3234234R1

WASHER

cover

3шт.

4

3234042R1

SPRING NUT

spring, 4.2 mm

5шт.

5

3234214R1

SPRING NUT

spring

14шт.

6

3234052R1

WASHER

cup, 6 mm

3шт.

7

P3528799

WASHER

SPACER bolt

2шт.

8

1328160C2

HINGE

roof hatch

2шт.

9

843-2612

SCREW,Flat , M6 x 16.3mm OAL, Cl 4.8

countersunk, cross recess, 6 x 12 mm

10шт.

10

825-1406

NUT,M6, Cl 8

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

3234047R1

PLASTIC GASKET

ADHESIVE silicon

1шт.

13

82456C3

HATCH

cab roof

1шт.

14

1328329C2

SEAL

roof hatch

1шт.

15

116555A1

SEAL

ADHESIVE black silicon

1шт.
