(5-020) - POWER STEERING TUBES, REAR, MFD TRACTORS WITH CAB, WITH OR WITHOUT 2 SPEED POWER SHIFT

Запчасти Case IH 3230 (5-020) - POWER STEERING TUBES, REAR, MFD TRACTORS WITH CAB, WITH OR WITHOUT 2 SPEED POWER SHIFT (05) - STEERING

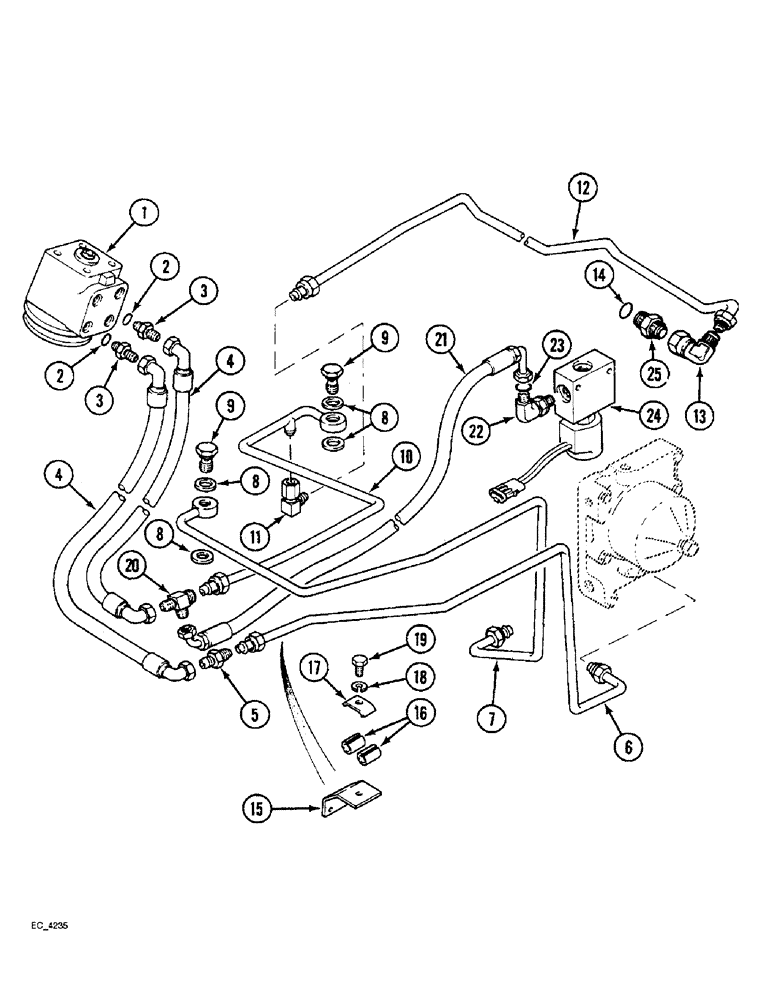

Схема запчастей Case IH 3230 - (5-020) - POWER STEERING TUBES, REAR, MFD TRACTORS WITH CAB, WITH OR WITHOUT 2 SPEED POWER SHIFT (05) - STEERING
7
19
6
2
5
9
2
18
13
1
3
20
10
11
16
8
24
23
17
9
3
4
12
14
15
4
8
21
22
25
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY integral, See figure 5-022

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

4

1502284C2

HOSE

hydraulic, pressure and return

2шт.

5

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, large hex

2шт.

6

99776C3

PIPE

TUBE ASSEMBLY pressure, power steering, Serial Range: -JJE0926824

1шт.

6

240547A1

HOSE

pressure, power steering, Start Serial: JJE0926825

1шт.

7

1287929C3

PIPE,65 mm Length

TUBE ASSEMBLY return

1шт.

8

109791A1

SEALING WASHER

SEAL bonded

4шт.

9

1500102C2

SCREW,Hollow, Hex, 3/4" - 16 x 35mm

hollow

2шт.

10

1287926C3

PIPE

TUBE ASSEMBLY supply, with 2 speed power shift

1шт.

11

99706C1

ELBOW

90 degree swivel

1шт.

12

123242A1

HYD TUBE

TUBE ASSEMBLY drop box, without creeper

1шт.

12

127350A1

HYD TUBE

TUBE ASSEMBLY drop box, with creeper

1шт.

13

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

90 degree

1шт.

14

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

13/32 ID x 5/64 inch

1шт.

15

1500300C1

SUPPORT

BRACKET power steering pipes

1шт.

16

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

17

1500302C1

CLAMP

tube

1шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

19

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, 6 - 1 x 20 mm

1шт.

20

123790A1

TEE

union, reducer

1шт.

21

123580A2

HOSE

differential lock, solenoid

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj o-Ring boss, Includes Ref. 23

1шт.

24

116242A1

SOLENOID

differential lock

1шт.

25

123627A1

FITTING

CONNECTOR, Serial Range: elbow-dropbox

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
