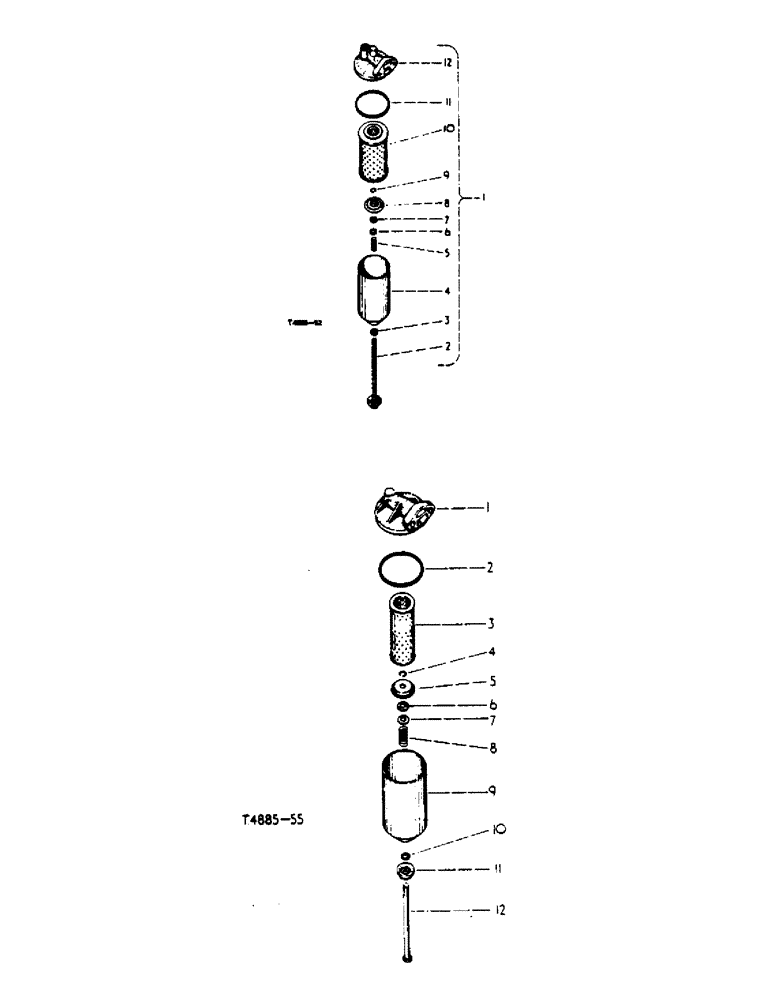

Запчасти Case IH 364 (1-15) - LUBRICATING OIL FILTER (01) - ENGINE

1

3042420R92

FILTER

oil assy., tecalemit, com. (1) bolt 3069976R91, (1) circlip 3065965R1, (1) container 3043289R1, (1) head 3069975R91, (1) package 3043282R92, (2) plate 3043315R1, (1) plate 3043293R91 (1) ring 3042423R1, (1) spring 3043291R1, (1) washer 3042428R1

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R1

BOLT

centre assy

1шт.

3

3042425R1

WASHER

centre bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, pressure, assy

1шт.

9

3065965R1

RING

CIRCLIP, centre bolt

1шт.

10

3043283R92

INSERT

PACKAGE, element service, with plate 3043315R1, ring 3042423R1 and ring 707859R1 opt with 3110452R91

1шт.

10

3066852R91

FILTER, ELEMENT

PACKAGE, element w/seal 707859R1 and (3) seal 3067730R91

1шт.

10

3110452R91

ENGINE OIL FILTER

ELEMENT, assy., w/seal 3067728R91 and seal 707859R1

1шт.

3043315R1

PLATE

adaptor

2шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

filter, assy

1шт.

706592R2

GASKET

lub. oil filter base

1шт.

3066851R91

FILTER

lubricating oil assy, Purolator, comprising

1шт.

1

3069113R91

HEAD

assy

1шт.

2

707859R1

SEALING RING

SEAL, head

1шт.

3

3043283R92

INSERT

PACKAGE, element service w/plate 3043315R1, ring 3043423R1, ring 707859R1 opt w/3110452R91

1шт.

3

3110452R91

ENGINE OIL FILTER

ELEMENT, assy. w/seal 3067728R91 and seal 707859R1

1шт.

3

3066852R91

FILTER, ELEMENT

PACKAGE, element w/3 seal 3067730R91 and 3 seal 707859R1

1шт.

4

707869R1

RETAINER

CIRCLIP

1шт.

5

3069108R1

GUIDE

element

1шт.

6

3069109R1

WASHER

SEAL

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

707866R1

SUMP

assy.

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

"O" RING

1шт.

11

707862R1

DISC

COLLAR

1шт.

12

3069112R1

BOLT

centre

1шт.

706592R2

GASKET

lub. oil filter hose

1шт.
