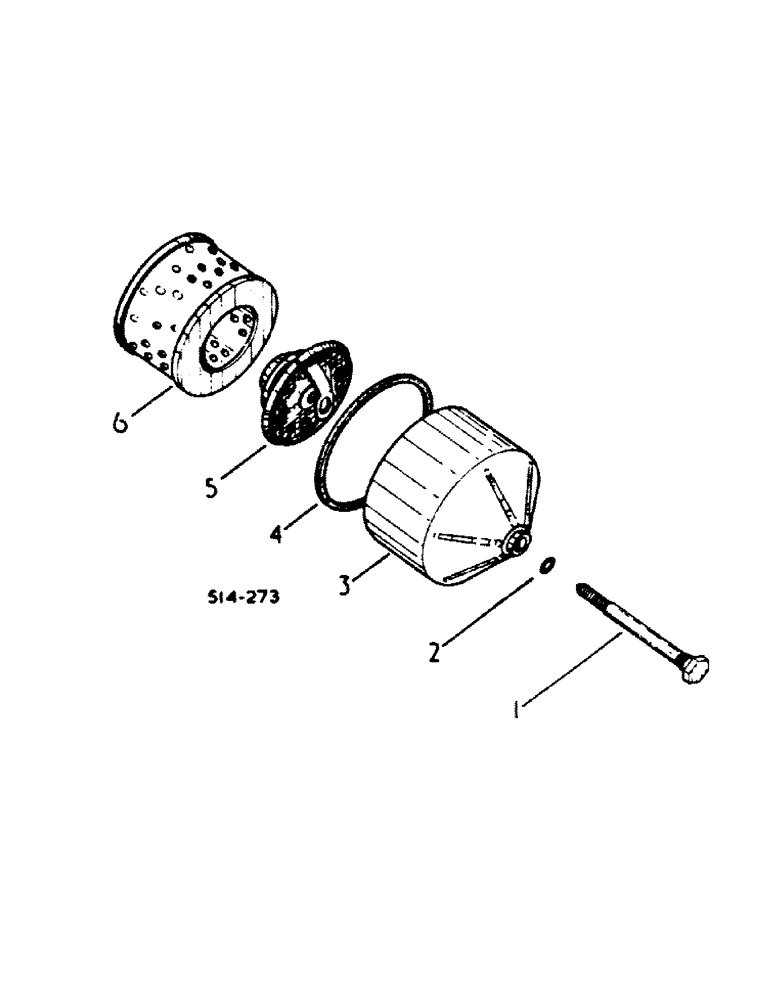

Запчасти Case IH 385 (10-04) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

1

68202C1

BOLT

BOLT, filter case center

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5, filter case seal

1шт.

3

68209C1

CASE

filter

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

5

405464R2

VALVE

AND SCREEN ASSY, by-pass

1шт.

6

530144R92

FILTER, ELEMENT

PACKAGE, oil filter element service, consists of

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 class 5

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5 element, filter (NSS)

1шт.
