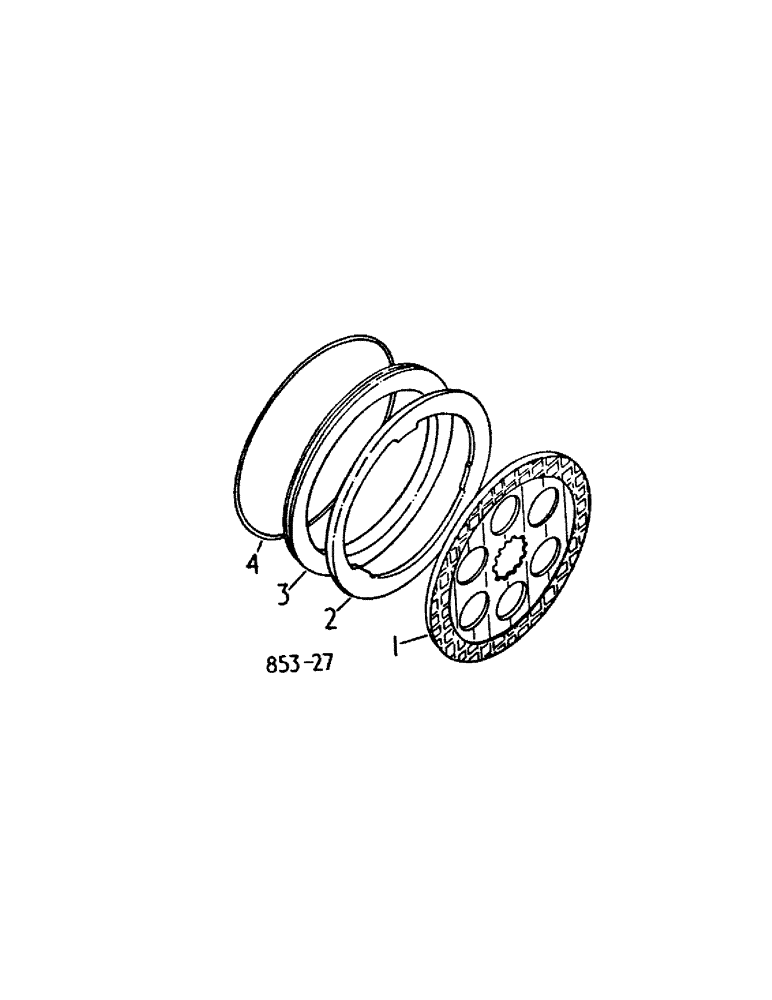

Запчасти Case IH 385 (04-02) - BRAKES, DISC BRAKES (5.1) - BRAKES

1

114622C2

BRAKE DISC

DISC, brake center

2шт.

2

399736R3

RING

brake, assemble w/numbered face inboard

2шт.

3

114621C1

PISTON

brake

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8

2шт.

539535R91

O-RING KIT

PACKAGE, brake o-ring service, consists of

1шт.

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 class 6, brake piston

2шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 class 6, differential brg carrier

2шт.

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16, differential brg carrier seal

2шт.
