(5-056) - MECHANICAL FRONT DRIVE "CARRARO", PLANETARIES

Запчасти Case IH 395 (5-056) - MECHANICAL FRONT DRIVE "CARRARO", PLANETARIES (05) - STEERING

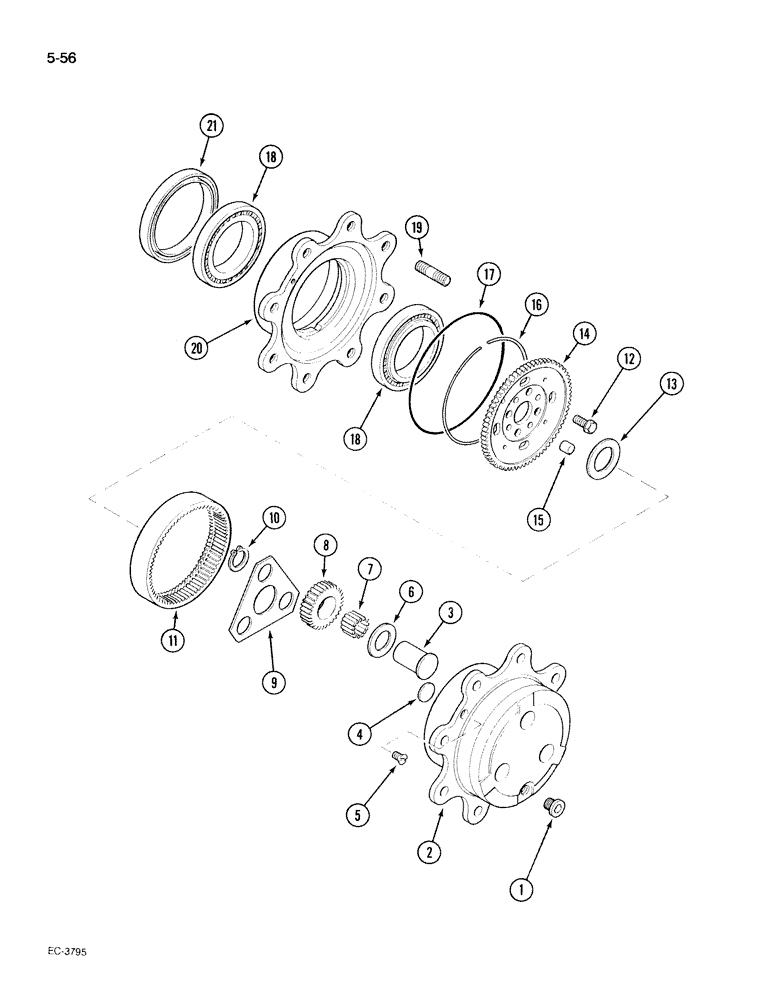

Схема запчастей Case IH 395 - (5-056) - MECHANICAL FRONT DRIVE "CARRARO", PLANETARIES (05) - STEERING
11
18
9
5
8
21
13
20
4
17
16
15
1
12
14
18
6
2
3
10
19
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain 30 mm - 2 mm

2шт.

1537870C1

HOUSING ASSY.

CARRIER ASSEMBLY - planetary, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - order 1537870C1

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - order 1537870C1

3шт.

4

1966579C1

WASHER

DISC

1шт.

5

K395082

SCREW,M8 x 20mm

- planetary cover plate

4шт.

6

K395091

THRUST WASHER

WASHER, THRUST

6шт.

7

119685A1

NEEDLE BEARING

BEARING - needle (Set of 10)

180шт.

Ref. 7 package quantity 1 contains 10 needle bearings.

1шт.

8

1537869C1

GEAR, PLANETARY

GEAR - planetary

6шт.

9

100555A1

LARGE PLATE

PLATE

2шт.

10

K395028

RING, SNAP

RING - lock

6шт.

11

1537868C1

CROWN WHEEL

GEAR - crown

2шт.

12

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, Hex Flg, M12 x 33, 12.9

12шт.

13

1537652C1

WASHER, THRUST

PLATE - thrust

2шт.

14

100564A1

PINION

PLATE - reaction

2шт.

15

100560A1

PIN,16mm OD x 30mm L

- centering

4шт.

16

100559A1

SPECIAL RING

RING

2шт.

17

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

18

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

BEARING

4шт.

19

100556A1

STUD

16шт.

20

100558A1

HUB

- wheel

2шт.

21

1984938C1

OIL SEAL

SEAL

2шт.
