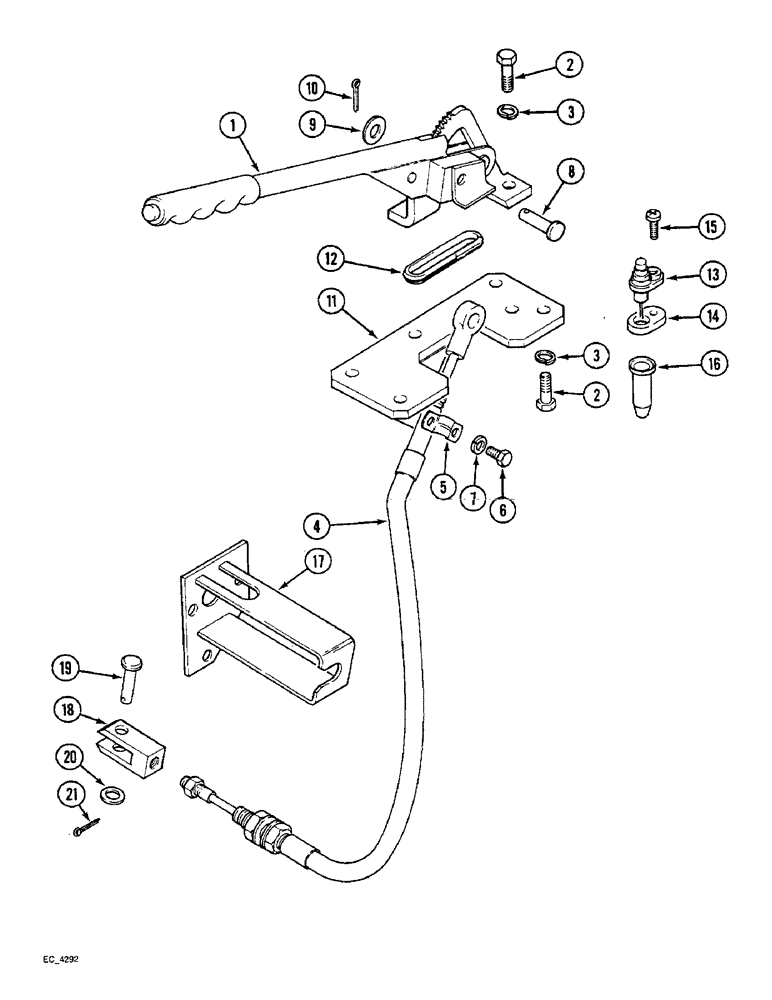

Запчасти Case IH 4240 (7-14) - PARK BRAKE 2 WHEEL DRIVE TRACTOR, TRACTOR WITH CAB (07) - BRAKES

1

116303A1

BRAKE LEVER

LEVER ASSEMBLY - park brake

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

6шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

4

134779A1

CABLE

- park brake

1шт.

5

1344178C1

CLAMP

- cable

1шт.

6

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

133946A2

SUPPORT

BRACKET - cable, upper

1шт.

12

135896A1

GROMMET

- cable

1шт.

13

1534229C1

PUSH BUTTON SWITCH

SWITCH - plunger, handbrake warning

1шт.

14

1534230C1

LARGE PLATE

PLATE - park brake, switch

1шт.

15

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

1шт.

16

1534251C1

BELLOWS

BELLOW - park brake switch, protector

1шт.

17

135312A2

SUPPORT

BRACKET - cable, lower

1шт.

18

119382A2

YOKE

CLEVIS - cable, connect

1шт.

19

729-830

CLEVIS PIN,M8 x 30

PIN - clevis, hardened, 8 x 30 mm

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

21

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.
