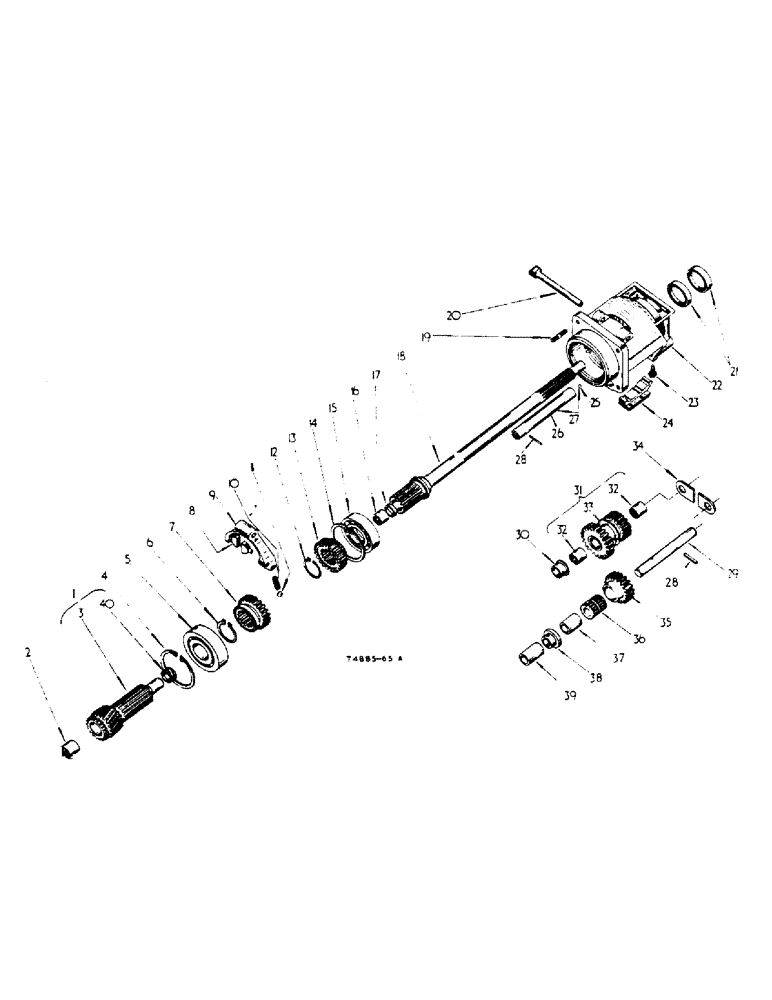

Запчасти Case IH 434 (6-055) - CLUTCH SHAFT GEAR HOUSING AND GEARS - ATTACHMENTS (06) - POWER TRAIN

CLUTCH SHAFT GEAR HOUSING AND GEARS (Tractors fitted w/Dual Clutch)

1шт.

GEAR HOUSING AND GEARS (Tractor fitted w/Heavy Duty Single Clutch)

1шт.

1

3073620R91

SHAFT

GEAR and SHAFT, w/COLLAR 3073619R1, cpte. driving trans., 434D/19949 up

1шт.

INCLUDING: 434P/2404 up, 434 Highway/516 up

1шт.

1

3070706R11

SHAFT

GEAR and SHAFT, w/COLLAR 3062459R1, cpte., driving trans., Serial Range: up-434D/19948

1шт.

INCLUDING: up to 434P/2403, up to 434 Highway/515

1шт.

2

321981R91

NEEDLE BEARING

pilot, trans. spline shaft, optional

1шт.

3068951R91

NO LONGER SERVICED

BEARING, pilot, trans. spline shaft, optional

1шт.

2

3069773R91

NEEDLE BEARING

BEARING, pilot, trans. spline shaft, optional

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot, bearing distance piece

1шт.

3

3070706R1

SHAFT

GEAR and SHAFT, trans. driving

1шт.

4

751081R1

CLIP

CIRCLIP, trans. driving shaft bearing, retaining

1шт.

5

3048738R91

CRANKSHAFT BEARING

BEARING, ball, rear, trans. driving shaft, optional

1шт.

5

3048739R91

BEARING

ball, rear, trans. driving shaft, optional

1шт.

5

3048740R91

BALL BEARING

BEARING, ball, rear, trans. driving shaft, optional

1шт.

5

3048741R91

BALL BEARING

BEARING, ball, rear, trans. driving shaft, optional

1шт.

5

3063610R91

BALL BEARING

BEARING, ball, rear, trans. driving shaft, optional

1шт.

6

3048709R1

RING, SNAP

CIRCLIP, retaining, trans, driving shaft rear ball bearing

1шт.

7

3048714R3

GEAR

output

1шт.

8

3048731R1

SHOE

gear shifter fork

2шт.

9

FORK, gear shifter (order PACKAGE 3067265R91)

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

10

3072000R1

SPRING

poppet, gear shifter rail

1шт.

11

16013R1

BALL

13/32" dia. grade

2шт.

12

3048709R1

RING, SNAP

CIRCLIP, clutch shaft rear ball bearing retaining, (tractors fittted w/dual clutch)

1шт.

12

3048709R1

RING, SNAP

CIRCLIP, trans. and P.T.O. rear ball bearing retaining, (tractors fitted w/heavy duty single clutch)

1шт.

13

3048711R1

GEAR

input

1шт.

14

751149R1

RING

CIRCLIP, clutch shaft rear ball bearing, retaining, (tractors fittted w/dual clutch)

1шт.

14

751149R1

RING

CIRCLIP, trans. and P.T.O. rear ball bearing,retaining, (tractors fitted w/heavy duty single clutch)

1шт.

15

703644R91

BALL BEARING

BEARING, ball, clutch shaft rear, optional, (tractors fittted w/dual clutch)

1шт.

15

704327R91

BEARING, BALL

clutch shaft rear, optional, (tractors fittted w/dual clutch)

1шт.

15

42454H

BALL BEARING

BEARING, ball, clutch shaft rear, optional, (tractors fittted w/dual clutch)

1шт.

15

708170R91

BEARING, BALL

clutch shaft rear, optional, (tractors fittted w/dual clutch)

1шт.

15

703644R91

BALL BEARING

BEARING, ball, trans. P.T.O. driving shaft rear, optional, (tractors fitted w/heavy duty single clutch)

1шт.

15

704327R91

BEARING, BALL

trans. P.T.O. driving shaft rear, optional, (tractors fitted w/heavy duty single clutch)

1шт.

15

42454H

BALL BEARING

BEARING, ball, trans. P.T.O. driving shaft rear, optional, (tractors fitted w/heavy duty single clutch)

1шт.

15

708170R91

BEARING, BALL

trans. P.T.O. driving shaft rear, optional, (tractors fitted w/heavy duty single clutch)

1шт.

16

3062462R91

BEARING

INA, (tractors fittted w/dual clutch)

1шт.

17

3062461R1

SPACER

pilot bearing distance piece, (tractors fittted w/dual clutch)

1шт.

18

3073618R1

SHAFT

clutch, 434D/19949 up, (tractors fittted w/dual clutch)

1шт.

INCLUDING: 434P/2404 up, 434 Highway/516 up

1шт.

18

3048705R1

RETAINER

SHAFT, clutch up to 434D/19948, (tractors fittted w/dual clutch)

1шт.

On orders for Shaft 3048704R1 furnish SHAFT 3073618R1 and COLLAR 3073619R1

1шт.

INCLUDING: up to 434P/2403, up to 434 Highway/515

1шт.

19

703877R1

STUD

3шт.

20

SHAFT, gear shifter fork, order PACKAGE 3067265R91

1шт.

21

3070050R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, optional, (tractors fittted w/dual clutch)

2шт.

21

3070049R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, optional, (tractors fittted w/dual clutch)

2шт.

21

3048756R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, optional, (tractors fittted w/dual clutch)

2шт.

22

3067261R2

HOUSING

gear carrier

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd.

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

Screw, mach., hex. Jam, 3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

3048721R1

BOLT (SPREADER)

BOLT, locking

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

3048730R2

RAIL

gear shifter

1шт.

NLS

NO LONGER SERVICED

1/4" x 7/8" hex-hd.

2шт.

141155

DOWEL,3/16" x 3/4"

PIN, dowel 3/16" x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

3072885R1

BALL,1/4" Dia

steel

1шт.

26

3048726R1

COUNTERSHAFT

1шт.

27

3048726R11

SHAFT

COUNTERSHAFT, w/BALL 16008R1 and COUNTERSHAFT 3048726R1 cpte.

1шт.

28

443024

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, 3/16" x 1-1/4", type B groove

2шт.

29

3070705R1

SHAFT

idler

1шт.

30

3048725R1

SPACER

countershaft

1шт.

31

3048722R21

GEAR

w/GEAR and two BEARING 3048759R91 cpte., countershaft cluster

1шт.

32

3048759R91

BEARING

needle roller, countershaft cluster gear

2шт.

33

NSS

NOT SOLD SEPARAT

GEAR, countershaft cluster

1шт.

34

3048715R3

THRUST WASHER

WASHER, thrust

2шт.

35

3070703R1

GEAR

idler, cpte.

1шт.

36

3070729R91

BEARING

needle roller, idler gear

1шт.

37

3070704R1

SLEEVE

idler gear, needle roller bearing

1шт.

38

3070707R1

SPACER

roller shaft

1шт.

39

3070708R1

TUBE,0.828" ID, 1.604" Length

idler spacer

1шт.

40

3073619R1

COLLAR

trans. driving shaft, 434D/19949 up

1шт.

INCLUDING: 434P/2404 up, 434 Highway/516 up

1шт.

40

3062459R1

COLLAR

trans. driving shaft, Serial Range: up-434D/19948

1шт.

INCLUDING: up to 434P/2403, up to 434 Highway/515

1шт.

3067261R21

HOUSING

cpte., gear carrier, (tractors fittted w/dual clutch), comprising

1шт.

3067261R2

HOUSING

1шт.

FORK

1шт.

3048756R91

SEAL

OIL SEAL

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

SHAFT

1шт.

3067262R92

HOUSING

cpte., gear carrier, (tractors fitted w/heavy duty single clutch), comprising

1шт.

3067261R2

HOUSING

1шт.

FORK

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

SHAFT

1шт.

3067265R91

FORK

PACKAGE service, shifter fork, comprising

1шт.

FORK

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

SHAFT

1шт.

3070727R91

PACKAGE

service, forward and reverse trans.

1шт.
