(1-16[1]) - LUBRICATING OIL FILTER, 3066851R91 - DIESEL ENGINE

Запчасти Case IH 434 (1-16[1]) - LUBRICATING OIL FILTER, 3066851R91 - DIESEL ENGINE (02) - ENGINE

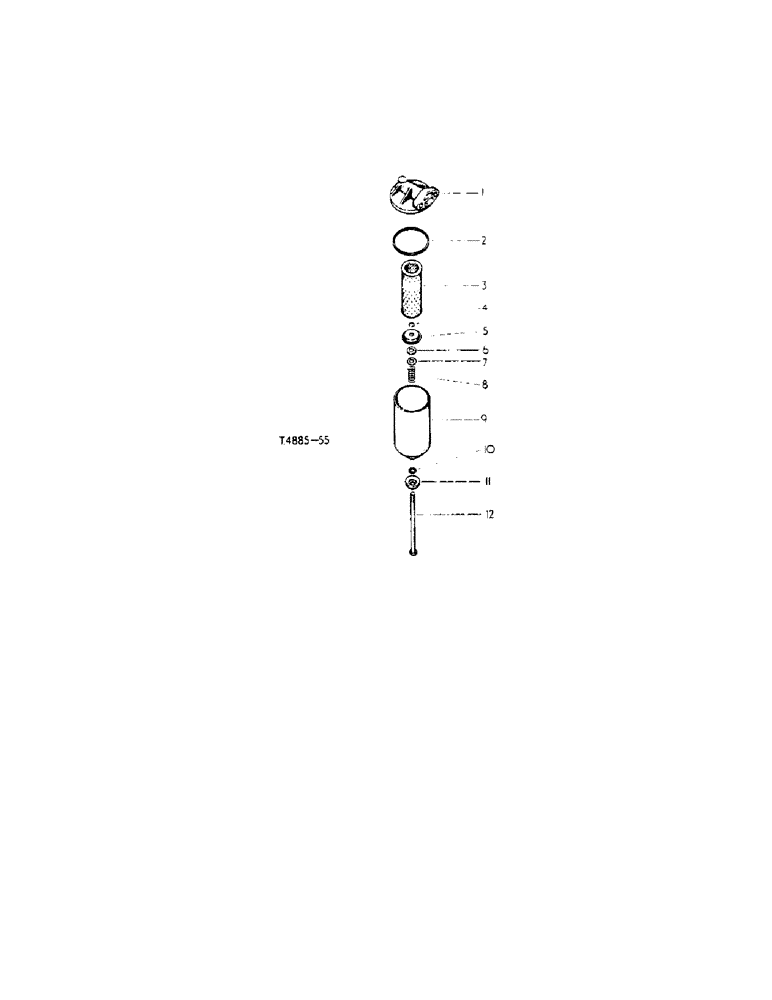

Схема запчастей Case IH 434 - (1-16[1]) - LUBRICATING OIL FILTER, 3066851R91 - DIESEL ENGINE (02) - ENGINE
8
4
11
9
1
2
10
5
7
3
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3066851R91

FILTER

lubricating oil assy., (Purolator), comprising: Ref. 1 - 12

1шт.

1

3069113R91

HEAD

assy.

1шт.

2

707859R1

SEALING RING

SEAL, head

1шт.

3

3043283R92

INSERT

PACKAGE, element service w/PLATE 3043423R1 and RING 707859R1 opt. w/3110452R91

1шт.

3

3110452R91

ENGINE OIL FILTER

ELEMENT, assy., w/SEAL 3067728R91 and SEAL 707859R1

1шт.

4

707869R1

RETAINER

CIRCLIP

1шт.

5

3069108R1

GUIDE

element

1шт.

6

3069109R1

WASHER

SEAL

1шт.

7

3069114R1

WASHER

1шт.

8

703789R1

SPRING

1шт.

9

707866R1

SUMP

assy.

1шт.

10

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

11

707002R1

COLLAR

1шт.

12

3069112R1

BOLT

center

1шт.

3043283R92

INSERT

PACKAGE, element (optional) w/3042419R93 & 705747R91

1шт.
