(1-16) - LUBRICATING OIL FILTER, 3042420R92 - DIESEL ENGINE

Запчасти Case IH 434 (1-16) - LUBRICATING OIL FILTER, 3042420R92 - DIESEL ENGINE (02) - ENGINE

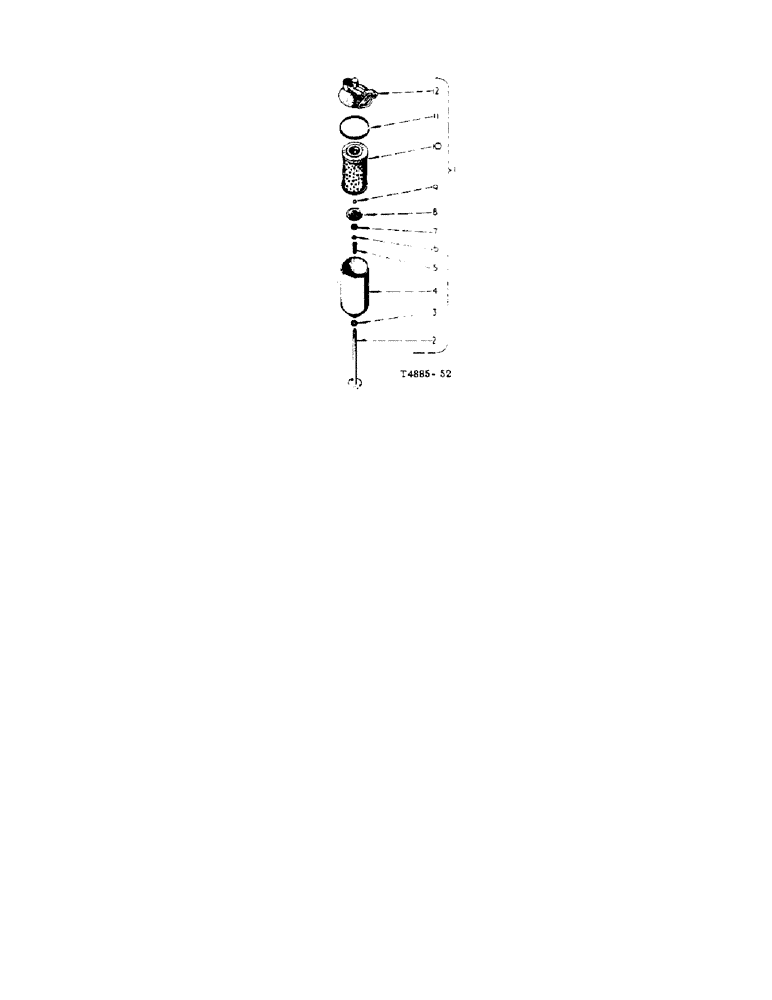

Схема запчастей Case IH 434 - (1-16) - LUBRICATING OIL FILTER, 3042420R92 - DIESEL ENGINE (02) - ENGINE
1
11
10
2
9
12
6
3
4
8
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3042420R92

FILTER

oil assy., Tecalemit, comprising: Ref. 2 - 12

1шт.

3069976R91

BOLT

1шт.

3065965R1

RING

CIRCLIP

1шт.

3043289R1

BODY

CONTAINER

1шт.

3069975R91

HEAD

1шт.

3043283R92

INSERT

PACKAGE

1шт.

3043315R1

PLATE

2шт.

3043293R91

LARGE PLATE

PLATE

1шт.

3042423R1

SEALING WASHER

RING

1шт.

3043291R1

SPRING

1шт.

3042425R1

WASHER

1шт.

3043292R1

WASHER

1шт.

3042428R1

WASHER

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R1

BOLT

center assy.

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE, pressure, assy.

1шт.

9

3065965R1

RING

CIRCLIP, center bolt (used w/grooved center bolt)

1шт.

9

3042430R1

RING, SNAP

CIRCLIP, center bolt

1шт.

10

3043283R92

INSERT

PACKAGE, element, service (with PLATE 3043315R1, RING 3042423R1 and RING 707859R1 opt. with 3110452R91)

1шт.

10

3110452R91

ENGINE OIL FILTER

ELEMENT, assy., w/SEAL 3067728R91 and SEAL 707859R1

1шт.

3043315R1

PLATE

adaptor

2шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

filter, assy.

1шт.
