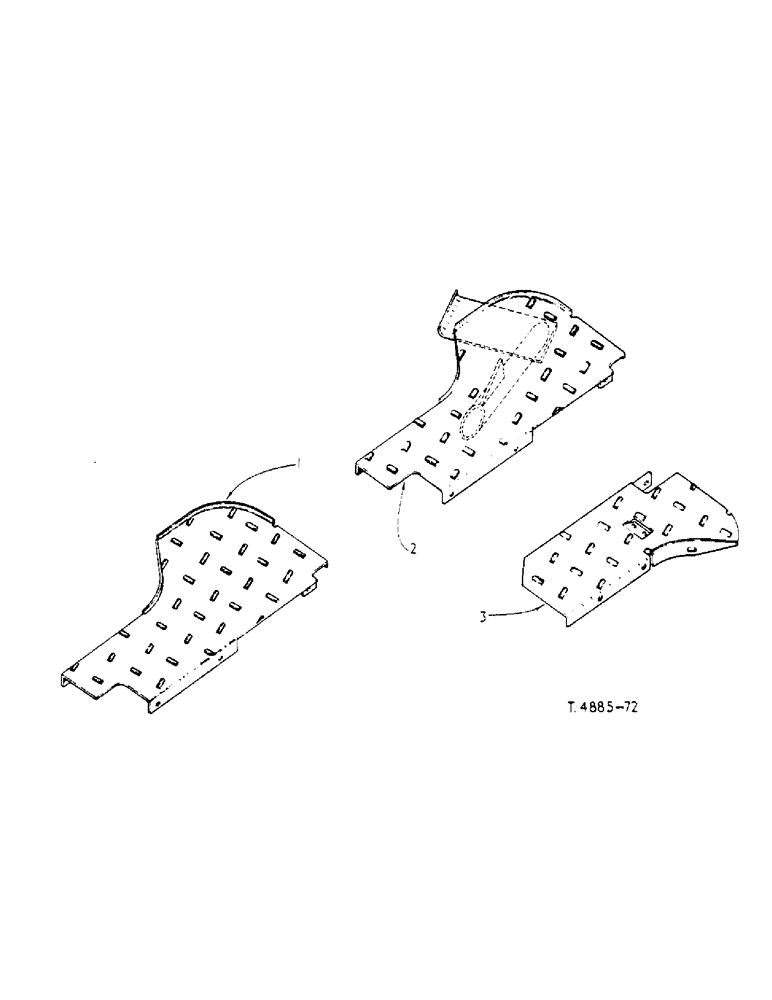

Запчасти Case IH 434 (8-05) - FOOTPLATES - NARROW TREAD (09) - CHASSIS

1

3105330R1

PLATE

FOOTPLATE cpte., L.H., 434NT/1001 up

1шт.

1

3068067R11

FOOTPLATE cpte., L.H., Serial Range: up-434NT/1000

1шт.

On orders for FOOTPLATE 3068067R11, furnish 3105330R1 together with EXTENSION 3105324R1 & EXTENSION 3105325R1

1шт.

2

3105321R1

FOOTPLATE mounting step cpte, L.H., 434NT/1001 up

1шт.

2

3068146R91

FOOTPLATE mounting step cpte., L.H., Serial Range: up-434NT/1000

1шт.

On orders for FOOTPLATE 3068146R91, furnish 3105321R1 together with EXTENSION 3105324R1 & EXTENSION 3105325R1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

3105331R1

DIVIDER BOARD

FOOTPLATE cpte., R.H., 434NT/1001 up

1шт.

3068068R11

FOOTPLATE cpte., R.H., Serial Range: up-434NT/1000

1шт.

On orders for FOOTPLATE 3068068R11, furnish 3105331R1 together with EXTENSION 3105324R1 & EXTENSION 3105325R1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.
