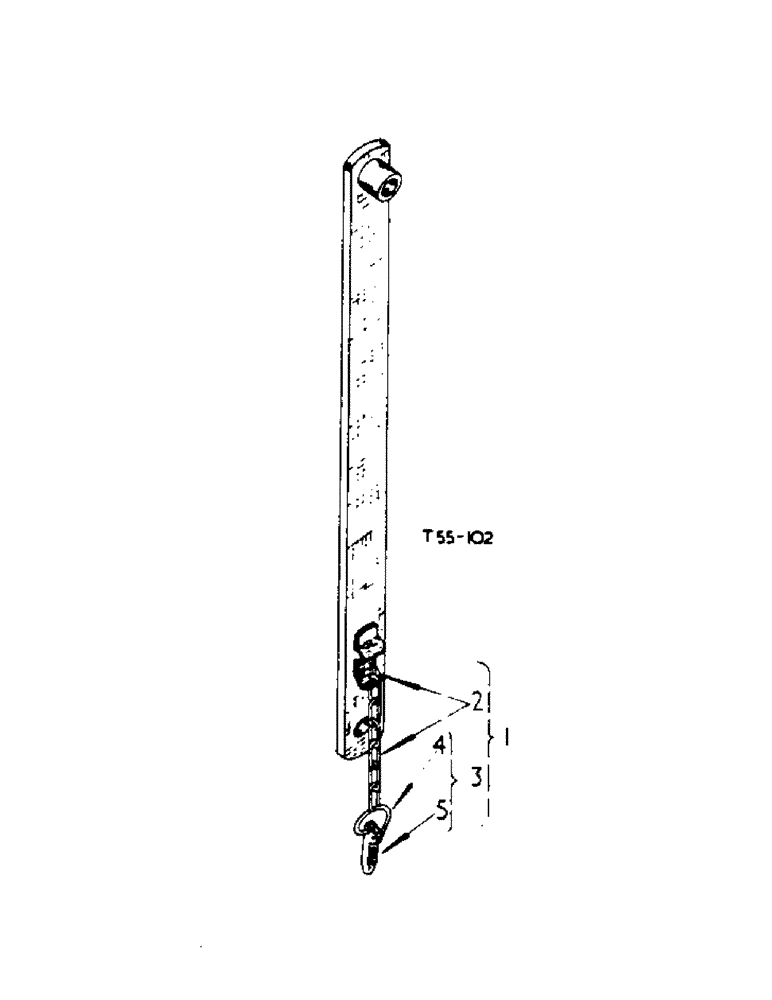

Запчасти Case IH 434 (6-095) - LIFT ARM STAY ROD ATTACHMENT - ATTACHMENTS (88) - ACCESSORIES

3049630R91

ATTACHMENT lift arm stay rod, comprising

1шт.

Fitted as basic equipment on all machines using 24-1 Loader

1шт.

This attachment is not required when the following attachments are fitted: HYDRAULIC LIFT ATTACHMENT, DRAWBAR ATTACHMENT, AUTOMATIC HITCH ATTACHMENT or Any Auxiliary Valve Attachment incorporating S.A. VALVE 3069019R92

1шт.

1

3049631R91

ROD lift arm stay, cpte., comprising

1шт.

2

707071R12

HOLDER, lynch pin cpte. w/Chain

1шт.

3

704212R91

COTTER PIN

COTTER, implement, cpte., comprising

1шт.

4

704281R1

LOCKING RING

RING, clip, implement cotter

1шт.

5

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

ATTACHMENT, Yellow Tractor Conversion, comprising

1шт.

3065329R91

NO LONGER SERVICED

LAMP plough, Yellow Tractor Conversion attachment

1шт.

For details of breakdown of Plough lamp, See: (Plough Lamps) Group 3 (Electrical)

1шт.

894623H1

INTERIOR LIGHT

LAMP, panel, Yellow Tractor Conversion attachment

1шт.

For details of breakdown of Panel lamp, See: Group 3 (Electrical)

1шт.

2752873R1

PRODUCT GRAPHIC

"INTERNATIONAL", Yellow Tractor Conversion attachment

2шт.

3072188R91

ATTACHMENT fuel filter element, comprising:

1шт.

3044506R91

ELEMENT

fuel filter, attachment

6шт.
