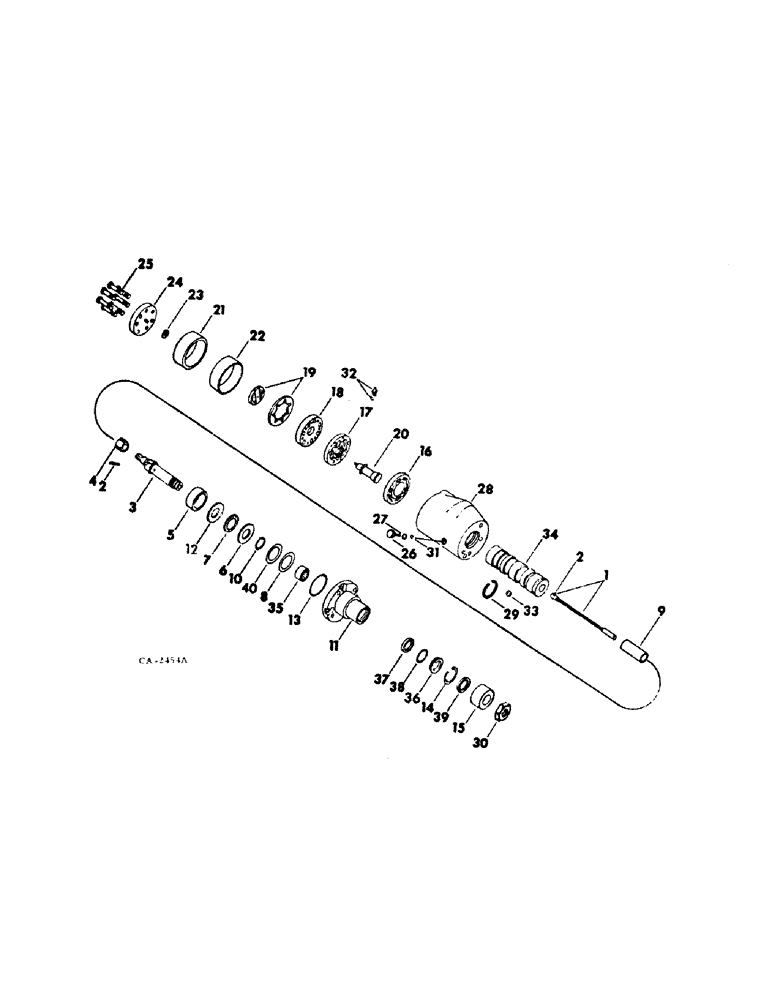

Запчасти Case IH 464 (10-24) - HYDRAULICS, HYDROSTATIC INTEGRAL STEERING ASSY (07) - HYDRAULICS

70110C94

PUMP

STEERING ASSY, integral hydrostatic, replaces 534852R91

1шт.

1

535055R1

BAR

TORSION BAR ASSY

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

535057R1

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING, thrust

1шт.

8

67567C1

PACKAGE

KIT, shim, consists of (4) shim .010 (NSS), (4) shim ,005 (NSS), (1) shim .002 (NSS), (1) shim .030 (NSS)

1шт.

9

535120R1

SPACER

drive link

1шт.

10

454331R1

SNAP RING,#87, Ext

1шт.

11

535090R1

COVER

upper, used only with steering assy, 534852R92

1шт.

11

70115C1

COVER

upper, used only with steering assy, 70110C94

1шт.

24481R1

SCREW

cover

4шт.

12

379785R1

THRUST WASHER

WASHER, thrust

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

535092R1

SHIELD

pump shaft, used only with steering assy, 534852R92

1шт.

16

535093R1

SPACER

1шт.

17

535095R1

ROTOR ASSY.

ROTOR SET

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK

1шт.

21

535098R1

BUSHING,77.57mm ID x 82.8mm OD x 39.62mm L

rotor

1шт.

22

71359C1

RETAINER

seal, replaces 71324C1

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

END COVER ASSY

1шт.

25

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

end cover

7шт.

26

379901R91

PLUG

AND ROLL PIN ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss Plug

1шт.

28

NSS

NOT SOLD SEPARAT

BODY ASSY, not serviced separately, furnish steering assy, 70110C94

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex

1шт.

31

16008R1

BALL,1/4" Dia, Steel

1/4 dia. stl

1шт.

32

405790R91

PACKAGE

vane and spring

1шт.

33

16010R1

BALL

5/16 dia. stl

1шт.

34

NSS

NOT SOLD SEPARAT

VALVE, spool, not serviced separately, furnish steering assy, 70110C94

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING, needle, not serviced separately, furnish cover assy

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER, seal, not serviced separately, furnish steering package

1шт.

37

NSS

NOT SOLD SEPARAT

RING, shaft seal, not serviced separately, furnish steering package

1шт.

38

NSS

NOT SOLD SEPARAT

RING, not serviced separately, furnish steering package

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL, rubber dirt, not serviced separately, furnish steering package

1шт.

40

928469C1

WAVE WASHER

wave

1шт.

123465C1

X

PACKAGE, hydrostatic steering assy service, replaces 70116C1, used only with steering assy, 70110C94, consists of (1) seal (NSS), (1) seal, spacer (NSS), (1) seal (NSS), (1) service bulletin (NSS)

1шт.

68200C1

SERVICE KIT

PACKAGE, hydrostatic steering service, used only with steering assy. 534852R92, consists of, (1) seal (NSS), (1) ring (NSS), (1) spacer (NSS), (1) seal (NSS)

1шт.
