(07-12) - DRIVE TRAIN, CLUTCH CONTROLS

Запчасти Case IH 464 (07-12) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train

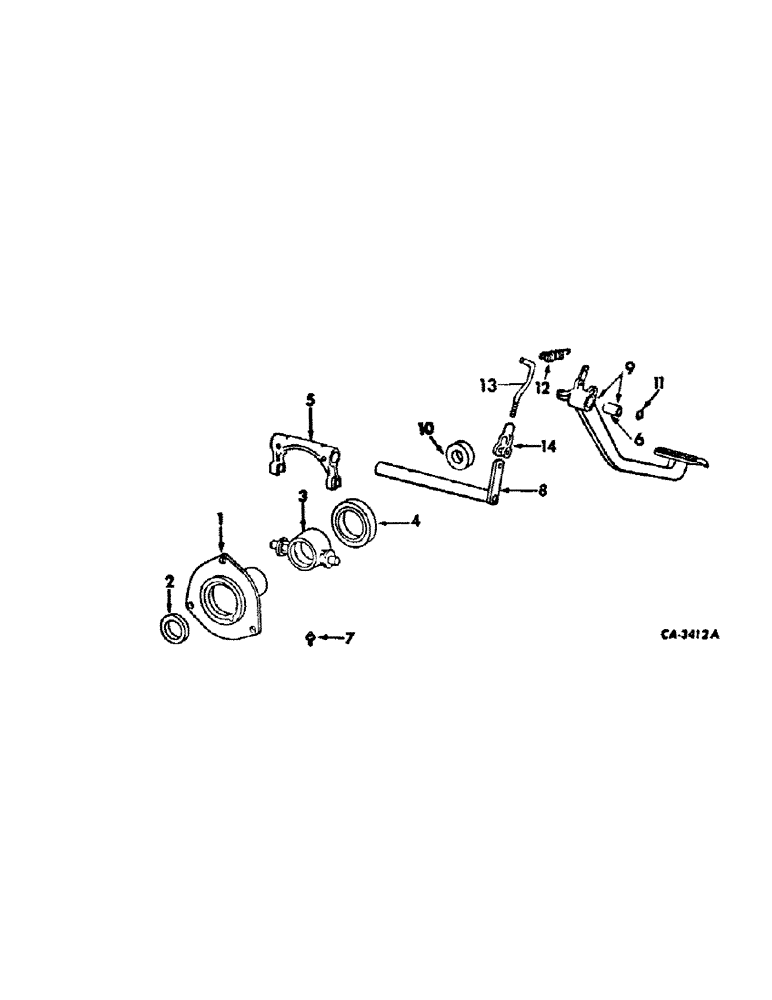

Схема запчастей Case IH 464 - (07-12) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train
5
14
8
13
2
9
12
1
4
3
7
10
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71229C1

SLIPPER

CARRIER, clutch release sleeve, on orders for carrier 398236R2 furnish carrier 71229C1, shaft 71230C1 and seal 108982C1

1шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

3шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

3шт.

2

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

release sleeve carrier oil, used with carrier 398236R2

1шт.

2

108982C1

OIL SEAL

SEAL, release sleeve carrier oil, used with carrier 71229C1

1шт.

3

105445C1

BUSHING

SLEEVE, clutch release, on orders for sleeve 360501R2 furnish sleeve 105445C1 and bearing 158125C91

1шт.

4

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

clutch release ball, used w/sleeve 360501R2

1шт.

4

158125C91

THRUST BEARING

BEARING, clutch release ball, used w/sleeve 105445C1

1шт.

5

398342R1

FORK

clutch release

1шт.

617932R1

PIN, 5/16 x 1-3/8 hvy pln cld spr

2шт.

6

539246R1

BUSHING

clutch pedal

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 PFT str lub, used w/sleeve 360501R2

1шт.

8

398237R2

SHAFT HOUSING

SHAFT ASSY, clutch release

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

9

530805R3

PEDAL

W/BUSHING, clutch

1шт.

23183R1

WASHER

.906 x 1.375 x .054

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 hex-hd ov-pt

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

11

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

12

399743R1

SPRING

clutch pedal return

1шт.

13

71086C1

ROD ASSY.

ROD ASSY, clutch operating, replaces 401475R2

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

14

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 light adj rod end

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.
