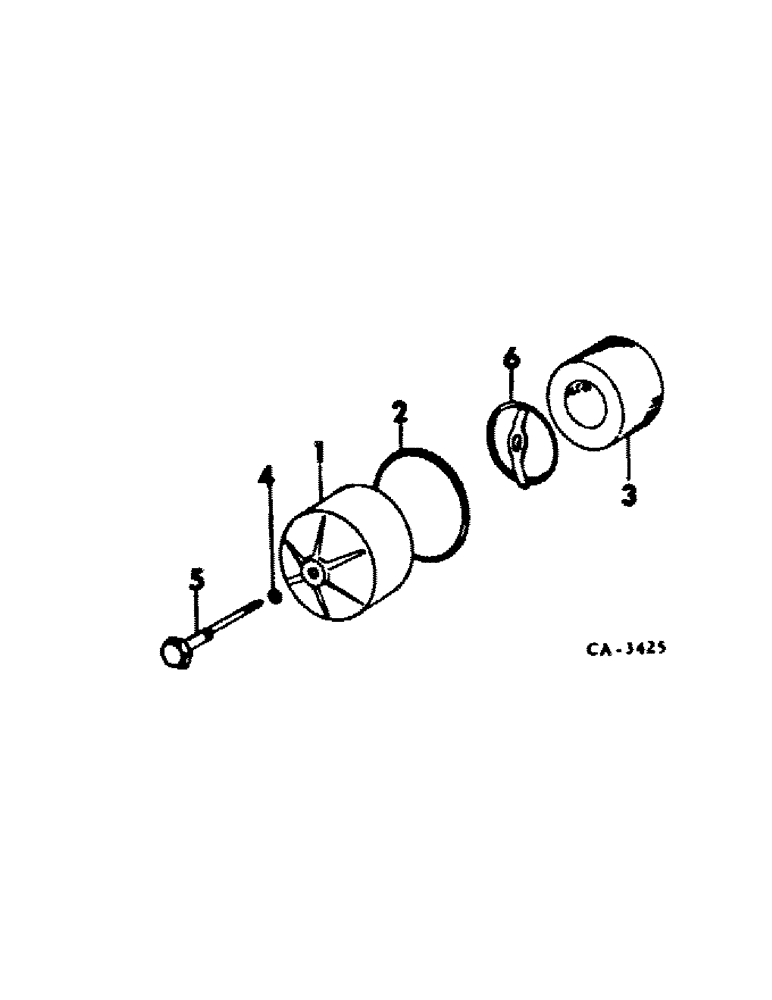

Запчасти Case IH 464 (10-15[1]) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

1

68209C1

CASE

filter, oil

1шт.

2

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT ASSY, not serviced separately, furnish oil filter element service package

1шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, filter case seal, oil

1шт.

5

68202C1

BOLT

BOLT, filter mounting, oil

1шт.

6

405464R2

VALVE

& SCREEN ASSY, by-pass, oil filter

1шт.

530144R92

FILTER, ELEMENT

PACKAGE, oil filter element service, consists of (1) gasket 405462R1, (1) o-ring 355966R1, (1) element (NSS), (1) o-ring 375271R1, (1) instructions (NSS)

1шт.
