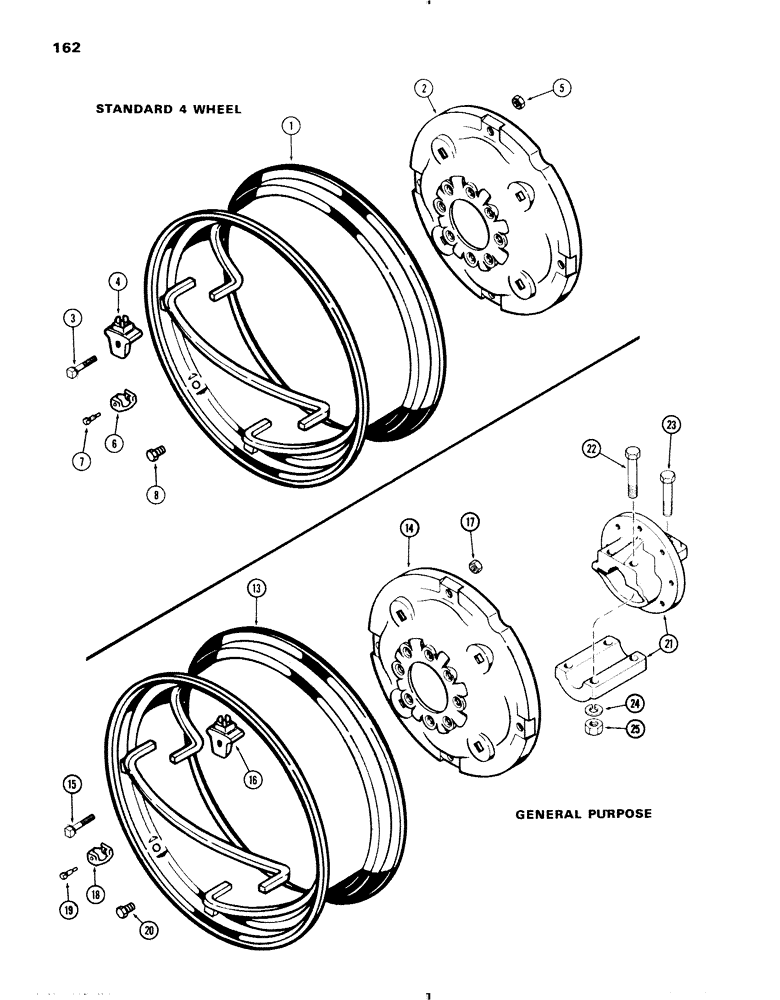

Запчасти Case IH 470 (162) - 28" POWER ADJUSTED REAR WHEELS, STANDARD 4 WHEEL TRACTOR (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

WHEEL ASSY. - rear, power adjusted (includes ref. 1 - 7)

2шт.

1

G13266

RIM - rear wheel (13.6 or 14.9 x 28" tire)

2шт.

2

A38654

DISC - wheel

2шт.

3

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- (3/4 x 3" N.C. square head) (plated)

8шт.

4

A33171

CLAMP

- double ramp, Serial Range: rim-wheel

8шт.

5

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C., heavy) (plated)

8шт.

6

A9406

STOP

LUG - rim stop

4шт.

7

A9440

STOP

SCREW - rim stop

4шт.

8

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - rear, Serial Range: wheel-lug

16шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSY. - rear, power adjusted, general purpose models (includes ref. 13 - 19)

2шт.

13

G13266

RIM - rear wheel (13.6 or 14.9 x 28" tire), general purpose models

2шт.

14

A38654

DISC - wheel, general purpose models

2шт.

15

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- (3/4 x 3" N.C. square head) (plated), general purpose models

8шт.

16

A33171

CLAMP

- double ramp, rim to wheel, general purpose models

8шт.

17

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex (3/4" N.C. heavy) (plated), general purpose models

8шт.

18

A9406

STOP

LUG - rim stop, general purpose models

4шт.

19

A9440

STOP

SCREW - rim stop, general purpose models

4шт.

20

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - rear wheel to lug, general purpose models

16шт.

21

A38213

HUB - rear wheel, general purpose models

2шт.

22

G10840

BOLT

- clamp to wheel hub (3/4 x 3-3/4") (outer), general purpose models

4шт.

23

G10841

BOLT

BOLT - clamp to wheel hub (3/4 x 4-1/2") (inner), general purpose models

4шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - lock (3/4" int./ext.), general purpose models

8шт.

25

G10842

NUT

- hex (3/4" N.F.), general purpose models

8шт.
