(166) - DUAL REAR WHEELS, 24" FOR STANDARD 4 WHEEL

Запчасти Case IH 470 (166) - DUAL REAR WHEELS, 24" FOR STANDARD 4 WHEEL (06) - POWER TRAIN

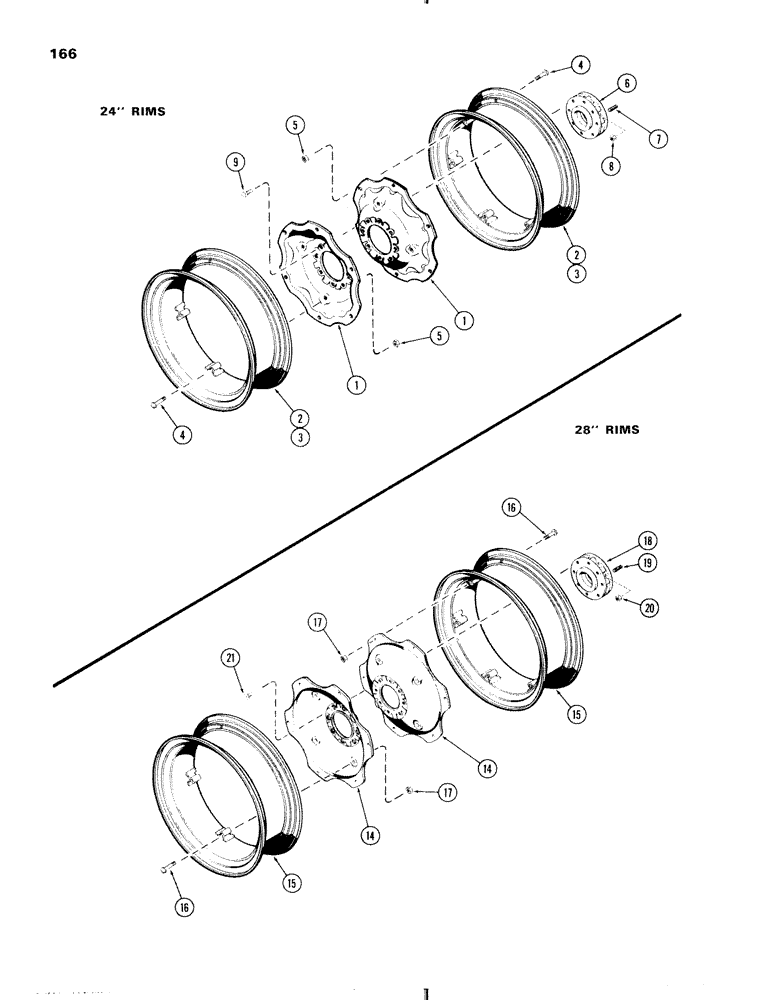

Схема запчастей Case IH 470 - (166) - DUAL REAR WHEELS, 24" FOR STANDARD 4 WHEEL (06) - POWER TRAIN
9
14
19
3
18
14
8
3
2
17
7
21
4
5
16
17
2
20
5
4
1
16
1
15
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G46240

DISC

- rear wheel, 24" demountable rim

4шт.

2

G45205

RIM

- demountable (12.4 x 24" tire)

4шт.

3

A35375

RIM - demountable (8.3 x 24" tire)

4шт.

4

G10701

BOLT

- rim to disc (5/8 x 2-11/16" special)

24шт.

5

129-565

SPECIAL NUT,5/8"-18, G5

- hex (5/8" N.F.) (plated)

24шт.

6

A38211

ADAPTER

- dual rear wheel

2шт.

7

A38210

STUD

- adapter (5/8" N.F. x 2-3/8")

16шт.

8

25-1710

NUT,5/8"-18, G5, Hvy

- hex (5/8" N.F. heavy)

16шт.

9

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. special)

16шт.

14

G12001

DISC

- wheel, 28" demountable rim, standard 4

4шт.

15

G12002

RIM

- demountable (12.4 x 28" tire), 28'' for standard 4 wheel

4шт.

16

G10701

BOLT

- rim (5/8 x 2-11/16" special), 28'' for standard 4 wheel

24шт.

17

129-565

SPECIAL NUT,5/8"-18, G5

- hex (5/8" N.F.) (plated), 28'' for standard 4 wheel

24шт.

18

A38211

ADAPTER

- dual rear wheel, 28'' for standard 4

2шт.

19

A38210

STUD

- adapter (5/8" N.F. x 2-3/8"), 28'' for standard 4 wheel

16шт.

20

25-1710

NUT,5/8"-18, G5, Hvy

- hex (5/8" N.F. heavy), 28'' for standard 4 wheel

16шт.

21

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. special), 28'' for standard 4

16шт.
