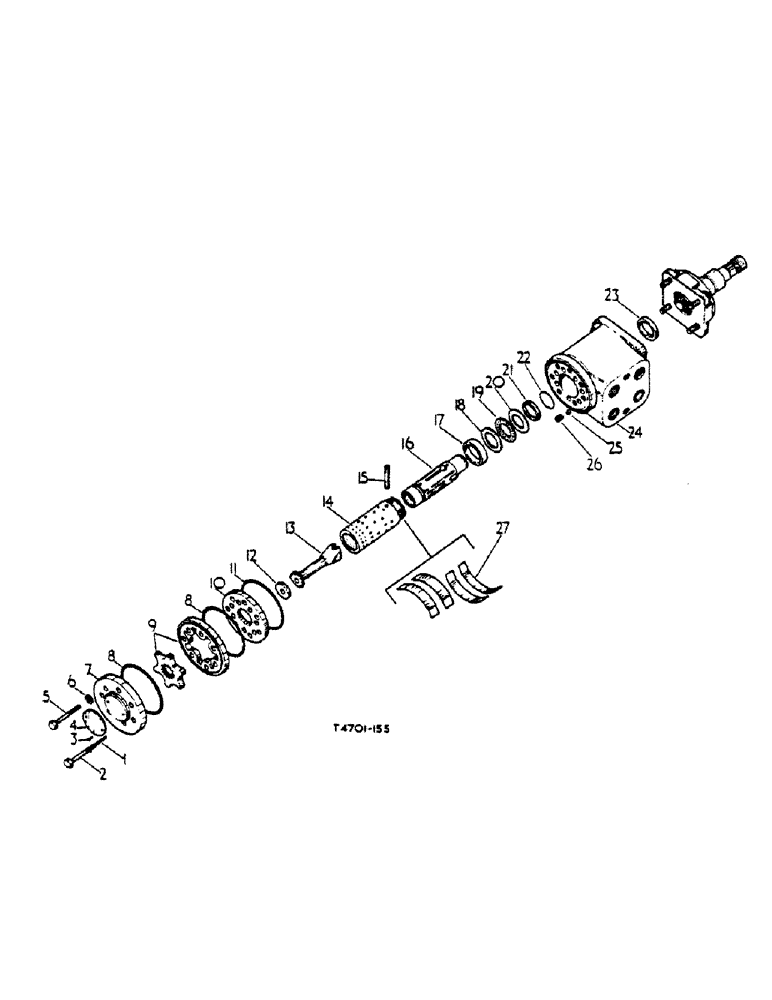

Запчасти Case IH 474 (10-24) - TEGRAL HYDROSTATIC STEERING VALVE (07) - HYDRAULICS

537422R92

LOCK VALVE

VALVE ASSY, INTEGRAL P/S

1шт.

1

PIN, ROLLED

1шт.

2

SCREW

1шт.

3

217910

SCREW

2шт.

4

PLATE, RATING

1шт.

5

SCREW

6шт.

6

3141538R1

WASHER

7шт.

7

3112273R1

COVER

CAP, END

1шт.

8

O-RING

2шт.

9

538918R1

ROTOR ASSY.

SET, ORBIT DRIVE - CONSISTS OF ITEMS 12 AND 13

1шт.

10

3112276R1

PLATE

VALVE

1шт.

11

O-RING

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

DRIVE

1шт.

14

SLEEVE

1шт.

15

3112269R1

PIN

CROSS

1шт.

16

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

3112268R1

WASHER

RACE, BEARING

1шт.

19

3112267R1

NEEDLE BEARING

BEARING, NEEDLE

1шт.

20

3112266R1

WASHER

AXIAL

1шт.

21

RING, KIN

1шт.

22

O-RING

1шт.

23

RING, SEAL

1шт.

24

HOUSING - CONSISTS OF ITEMS 14 AND 16

1шт.

25

BALL

1шт.

26

3112272R1

BUSHING

THREADED

1шт.

27

3112265R1

SPRING

PLATE, SPRING

4шт.

ref

Part No.

English

1шт.

538928R1

SEAL KIT

KIT, SEAL AND O-RING - CONSISTS OF ITEMS 8, 11, 21, 22 AND 23 - THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

538914R1

VALVE

SHAFT, CONTROL , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.
