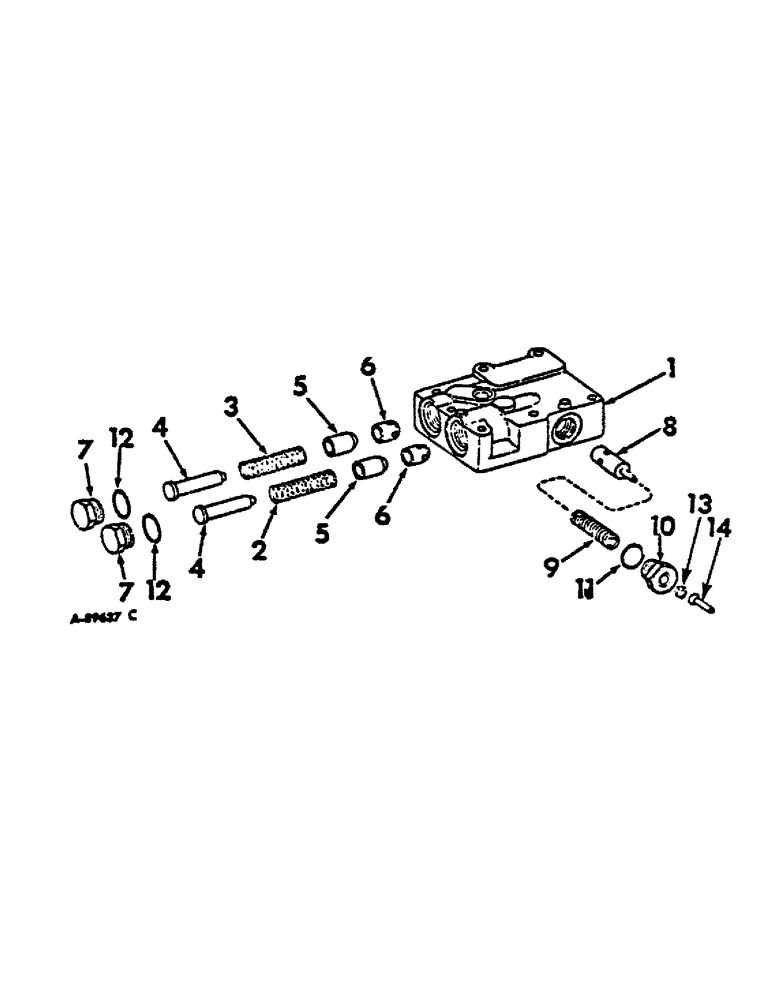

Запчасти Case IH 474 (07-10) - MULTI-VALVE (04) - Drive Train

1

401094R2

BODY

1шт.

2

396128R1

SPRING

POPPET VALVE HV

1шт.

3

396129R1

SPRING

POPPET VALVE LT

1шт.

4

396130R2

PIN

POPPET VALVE PISTON

2шт.

5

396131R2

VALVE

POPPET

2шт.

6

396132R1

BUSHING

POPPET VALVE

2шт.

7

396133R1

PLUG

VALVE RETAINING

2шт.

8

529318R1

VALVE

COOLER BY PASS

1шт.

9

529319R1

SPRING

COOLER BY-PASS

1шт.

10

535151R1

PLUG

COOLER BY-PASS VALVE

1шт.

11

369269R1

GASKET

O-RING, 3/4 OD TUBE COOLER BY-PASS

1шт.

VALVE PLUG

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE VALVE RETAINING

1шт.

PLUG

2шт.

13

535152R91

WIPER SEAL

SEAL, OIL

1шт.

14

535153R1

PIN

PRESSURE CHECK

1шт.
