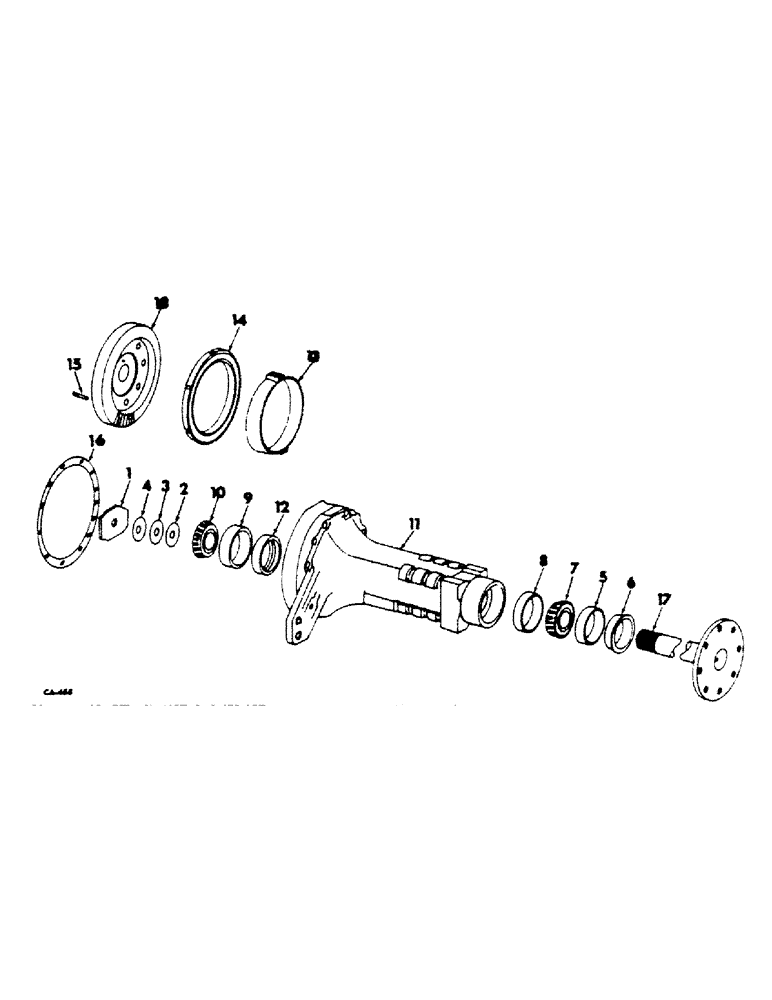

Запчасти Case IH 474 (07-26) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

399748R1

SPACER

PLANET CARRIER RET

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW, 5/8-18 x 1-1/2 HEX HD CAP

2шт.

2

SHIM, REAR AXLE RETAINER .007 - ORDER PACKAGE 65422C1

1шт.

3

SHIM, REAR AXLE RETAINER .012 - ORDER PACKAGE 65422C1

1шт.

4

SHIM, REAR AXLE RETAINER .0299 - ORDER PACKAGE 65422C1

1шт.

5

399794R91

SEAL

REAR AXLE OUTER OIL - OPTIONAL W/530105R91

2шт.

5

530105R92

SEAL

REAR AXLE OUTER OIL - OPTIONAL W/399794R91

2шт.

6

399796R1

SLEEVE

WEAR

2шт.

7

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

REAR AXLE OUTER CONE - OPTIONAL W/383970R91 AND 383971R91

1шт.

7

383970R91

BEARING ASSY,3.0635" ID x 4.7822" OD x 0.6875, 0.9688"

BEARING ASSY, REAR AXLE OUTER CONE - OPTIONAL W/383971R91 AND ST2129

2шт.

7

383971R91

BEARING CONE

BEARING ASSY, REAR AXLE OUTER CONE - OPTIONAL W/383970R91 AND ST2129

2шт.

8

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, REAR AXLE OUTER CUP - OPTIONAL W/572901R1 AND 588266R1

2шт.

8

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

BEARING, REAR AXLE OUTER CUP - OPTIONAL W/588266R1 AND ST988

2шт.

8

588266R1

BEARING CUP

BEARING, REAR AXLE OUTER CUP - OPTIONAL W/572901R1 AND ST988

2шт.

9

399798R91

OIL SEAL

SEAL, REAR AXLE INNER OIL - OPTIONAL W/530102R91

2шт.

9

530102R91

OIL SEAL

SEAL, REAR AXLE INNER OIL - OPTIONAL W/399798R91

2шт.

10

972465R91

BEARING ASSY,69.8565 mm ID x 25.311 mm

ASSY, REAR AXLE INNER CONE - OPTIONAL W/399800R91

2шт.

10

399800R91

BEARING ASSY

BEARING ASSY, REAR AXLE INNER CONE- OPTIONAL W/972465R91

2шт.

11

399801R1

AXLE CARRIER

CARRIER, REAR AXLE LH

1шт.

11

528444R1

AXLE CARRIER

CARRIER, REAR AXLE LH - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

11

399803R1

AXLE CARRIER

CARRIER, REAR AXLE RH

1шт.

11

528445R1

AXLE CARRIER

CARRIER, REAR AXLE RH - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 HEX HD CAP, Course Threads

22шт.

12

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

BEARING, REAR AXLE INNER CUP - OPTIONAL W/379379R1

2шт.

12

379379R1

BEARING CUP

BEARING, REAR AXLE INNER CUP - OPTIONAL W/972466R1

2шт.

13

535317R1

GEAR, RING

66T

2шт.

14

399760R1

RING

BRAKE OUTER DISC

2шт.

15

529686R1

DOWEL

PIN DOWEL

6шт.

16

399762R1

GASKET

REAR AXLE CARRIER

2шт.

17

404345R13

HALF SHAFT

AXLE ASSY, REAR

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, REAR WHEEL

16шт.

3047575R2

NUT,Wheel, 5/8"-18

REAR WHEEL

16шт.

17

528441R11

SPARE PART

AXLE ASSY, REAR - TRACTORS W/HAND OPERATED DRUM BRAKE

2шт.

528440R1

BOLT

REAR WHEEL

16шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

5/16-18 x 1 SLT F HD MACH

4шт.

18

65254C1

SHAFT

SET, BEVEL GEARS MATCHED SET, BEVEL GEARS MATCHED - 12/53

1шт.

NSS

NOT SOLD SEPARAT

GEAR 399452R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SHAFT 65257C1

1шт.

Not available for service

1шт.

18

65255C1

GEAR SET

SET, BEVEL GEARS MATCHED - SET, BEVEL GEARS MATCHED - 14/51

1шт.

NSS

NOT SOLD SEPARAT

GEAR 399453R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SHAFT 65256C1

1шт.

Not available for service

1шт.

65422C1

SHIM KIT

PACKAGE, REAR AXLE RETAINING SHIM, NOT ILLUSTRATED SERVICE

1шт.
