(10-06) - HYDRAULICS, STEERING WHEEL

Запчасти Case IH 484 (10-06) - HYDRAULICS, STEERING WHEEL (07) - HYDRAULICS

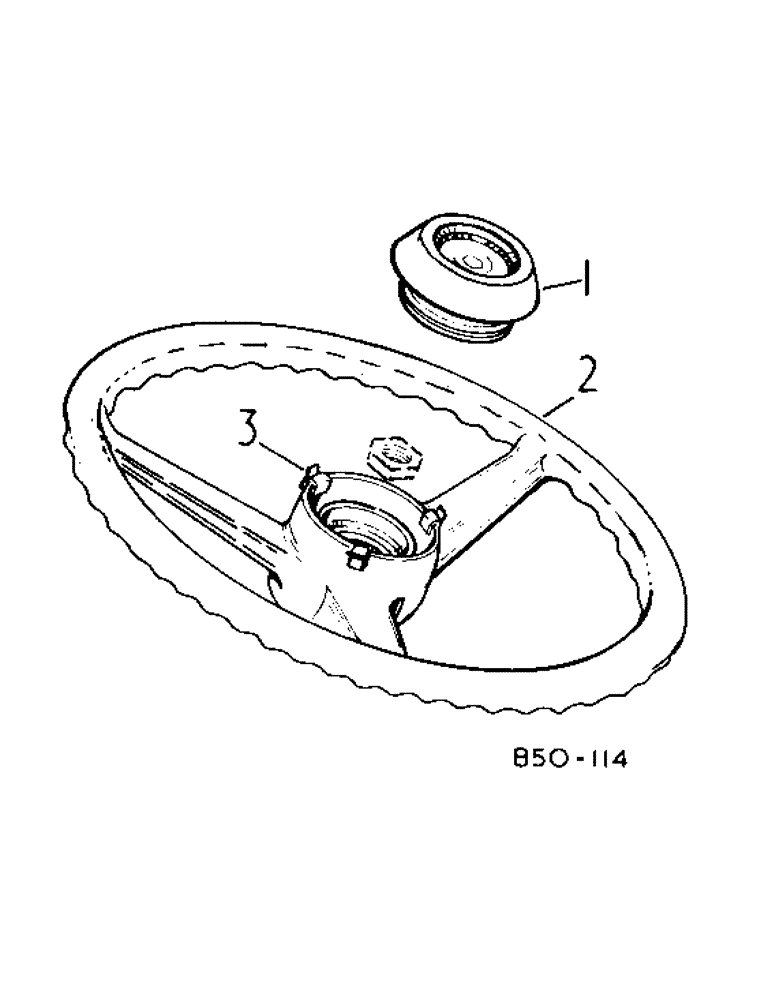

Схема запчастей Case IH 484 - (10-06) - HYDRAULICS, STEERING WHEEL (07) - HYDRAULICS
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

99866C1

CAP

steering wheel (replaces 68837C1)

1шт.

2

385156R1

WHEEL (STEERING)

WHEEL, 408mm dia steering

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

3123302R91

HANDWHEEL

WHEEL, 408 mm dia. steering, low dish, low profile tractors

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP, retaining

3шт.
