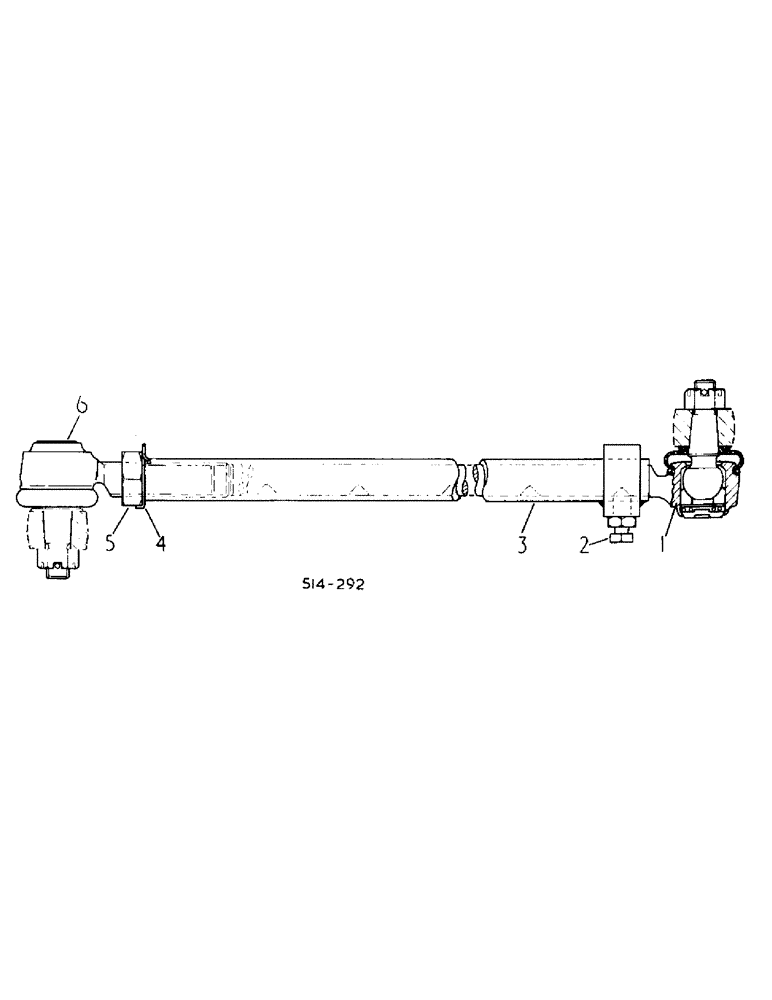

Запчасти Case IH 484 (14-08) - SUSPENSION, TIE ROD ASSY, ADJUSTABLE FRONT AXLE, STRAIGHT Suspension

ROD ASSY. (NSS) adj tie, order components

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

If customer has 1/2" thread, see Figure 4 - this section.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

1

3116406R2

END ASSY.

END ASSY, LH

1шт.

THE DIAMETER OF 3116406R2 IS 13/16". IT HAS A 9/16" THREAD. IF 1/2" THREAD IS NEEDED, ORDER 3129378R1 WHICH IS ALSO THE CLAMP TYPE. 3116406R3 IS 15/16" LONG CENTER OF STUD TO END. 3116406R3 IS 15 1/8" LONG CENTER OF STUD TO END DISTANCE BETWEEN SET SCREW HOLES IS 2" ON 3116406R3 - KL

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD, intermediate and riser assy

1шт.

4

3116411R1

LOCK WASHER

tab

1шт.

5

3116412R1

LOCK NUT

NUT, lock

1шт.

6

3116407R2

BALL JOINT

END ASSY, RH

1шт.
