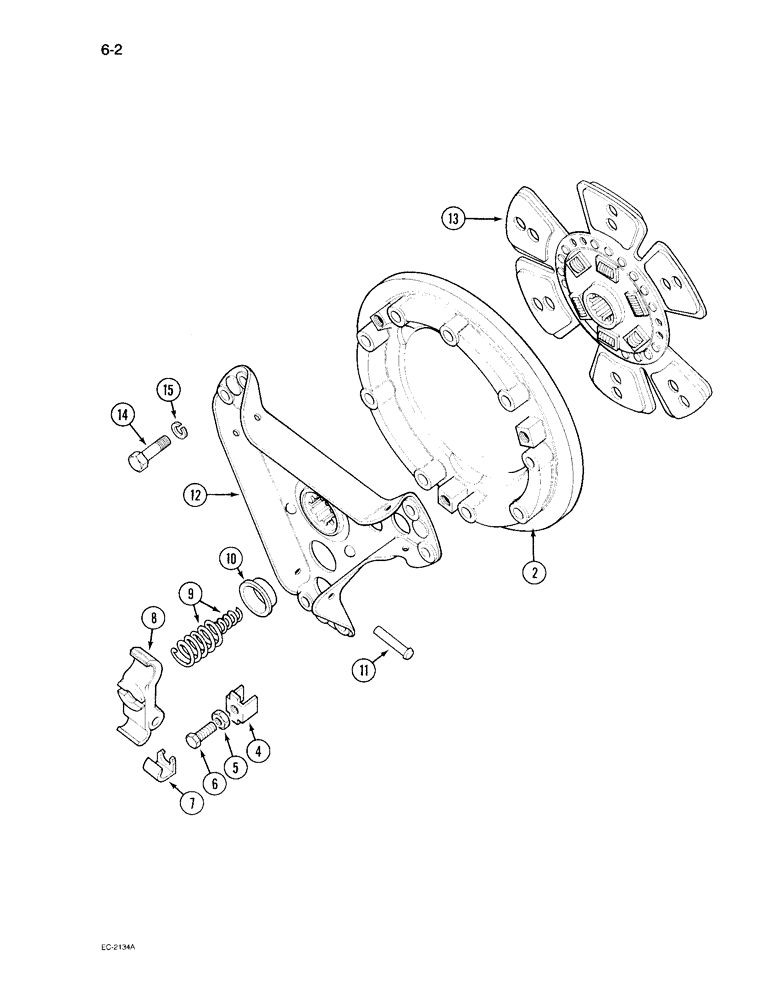

Запчасти Case IH 495 (6-002) - CLUTCH, LAYCOCK 11 INCH CLUTCH (06) - POWER TRAIN

1944250C2

REMAN-CLUTCH PLATE

Plate Assembly - clutch pressure, remanufactured

1шт.

1944251C1

CORE-CLUTCH PLATE

Return Part Number - clutch pressure plate (Use this part number to return clutch pressure plate core for credit)

1шт.

92602C92

CLUTCH ASSEMBLY

Plate Assembly - clutch pressure, Includes: pressure plate assembly kit and Ref. 2 - 12

1шт.

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 tooth Hub,

1шт.

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

92605C1

DISC

KIT - pressure plate assembly (Order 102813A1), Includes: Ref. 2 - 7

1шт.

2

102813A1

CLUTCH, PRESSURE PLA

PLATE - pressure (Order kit 92605C1)

1шт.

92607C1

PACKAGE

KIT - adjusting screw and clip, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - lug (Order kit 92607C1)

3шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT - adjusting screw (Order kit 92607C1)

3шт.

6

NSS

NOT SOLD SEPARAT

SCREW - adjusting (Order kit 92607C1)

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP - return (Order kit 92607C1)

3шт.

8

102812A1

PACKAGE, REPAIR

LEVER - release (Order kit 92605C1)

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING - pressure (Order kit 92605C1)

3шт.

10

NSS

NOT SOLD SEPARAT

CUP - spring (Order kit 92605C1)

3шт.

11

NSS

NOT SOLD SEPARAT

PIN - pivot (Order kit 92605C1)

3шт.

12

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - clutch (Order 92605C1)

1шт.

13

3121507R95

CLUTCH DISC

CLUTCH DISK PLATE ASSEMBLY - clutch driven disc

1шт.

13

293248A1R

REMAN-CLUTCH DISC

495, Reman For New P/N 3121507R95

1шт.

13

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

1944253C1

REMAN-CLUTCH PLATE

Plate Assembly - clutch driven disc, remanufactured

1шт.

13

1944254C1

DRIVEN PLATE

Return Part Number - clutch driven disc plate (Use this part number to return driven disc plate core for credit)

1шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
