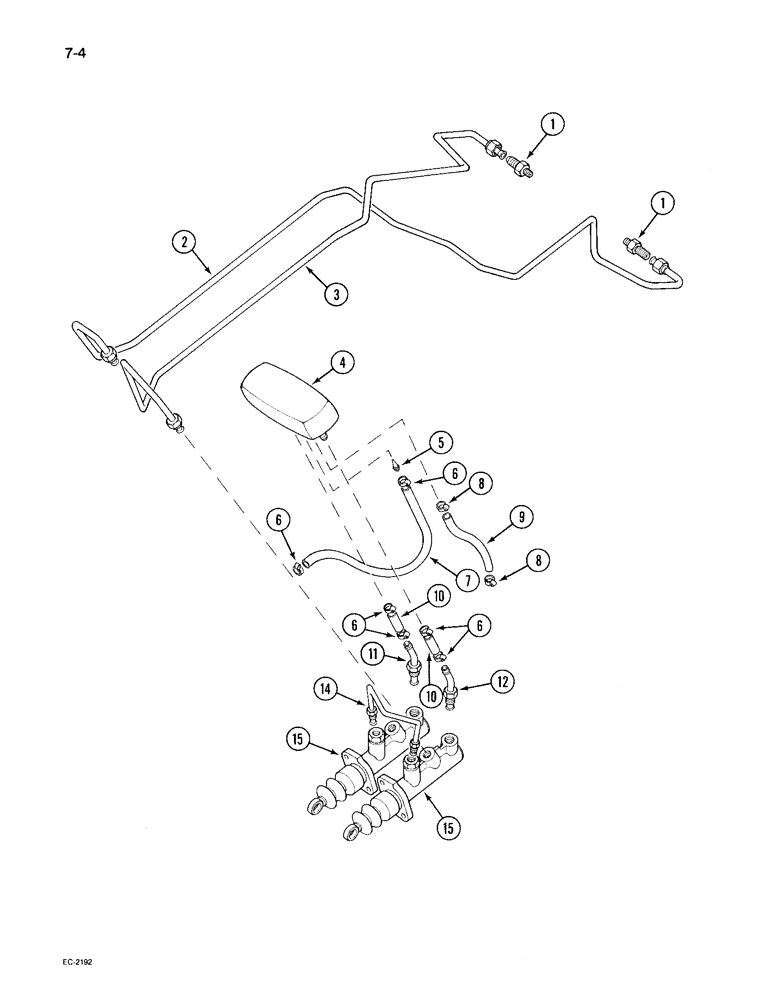

Запчасти Case IH 495 (7-004) - BRAKE RESERVOIR AND PIPES (07) - BRAKES
6
10
12
11
5
7
6
9
15
10
8
1
15
3
1
4
14
2
6
8
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
7
3125841R1
HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14
- brake reservoir supply
1шт.
8
274085R91
HOSE CLAMP,#10, 0.56/1.06 Type F Worm
CLAMP - hose, No. 10, type F
2шт.
10
3125843R1
HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7
Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7
2шт.
14
1287847C2
BRAKE LINE,4.78 mm OD, 79, 65 mm Length
TUBE ASSEMBLY - equalizer
1шт.
15
1287843C91
MASTER CYLINDER
CYLINDER ASSEMBLY - brake master (See Figure 7-006)
2шт.
