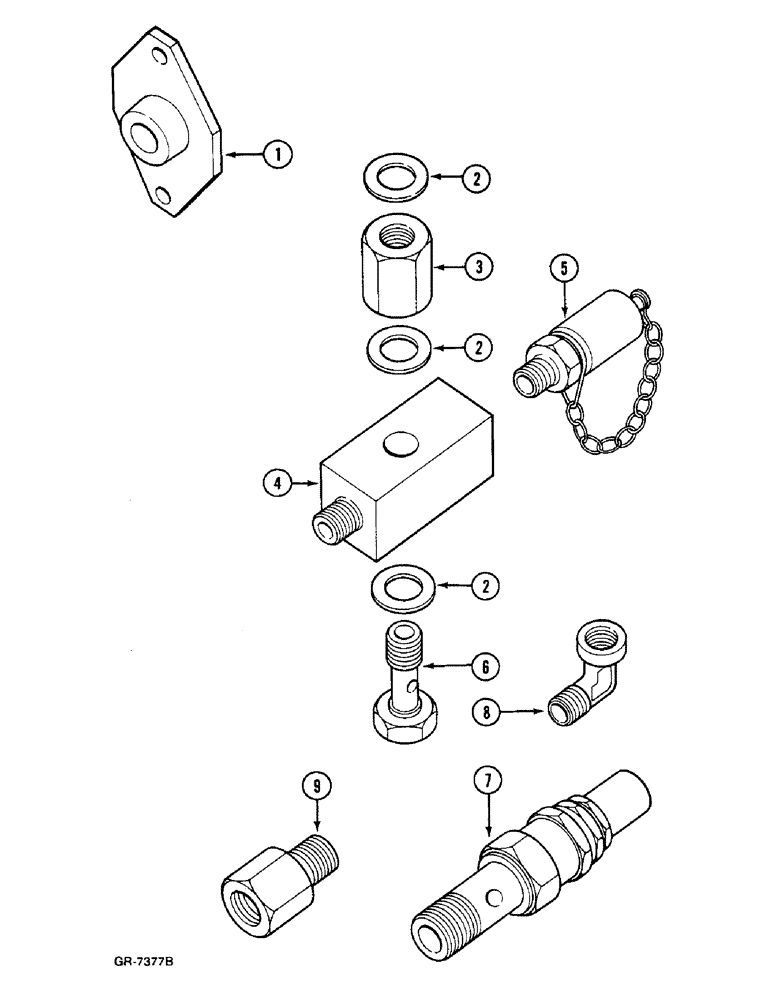

Запчасти Case IH 533 (8-570) - CONNECTING PARTS FOR CASE-IH TEST CENTRE (08) - HYDRAULICS

3221908R91

PACKAGE

consists of Ref. 1 - 6

1шт.

1

3221912R91

COVER

1шт.

2

933697R1

SEALING RING,M10 x 13.5 x 1

3шт.

3

3221917R1

NUT

1шт.

4

3221916R1

ADAPTER

1шт.

5

3139135R1

COUPLING, BREAK AWAY

M16 x 3 mm

7шт.

6

3221915R1

SCREW

1шт.

7

3221911R1

SCREW

for 3148099R91

1шт.

8

444163

ELBOW

1шт.

9

3221918R91

UNION

SPARE PART

1шт.

934847R1

CROWN NUT,Crown, M10 x 1, Cl6

1шт.
