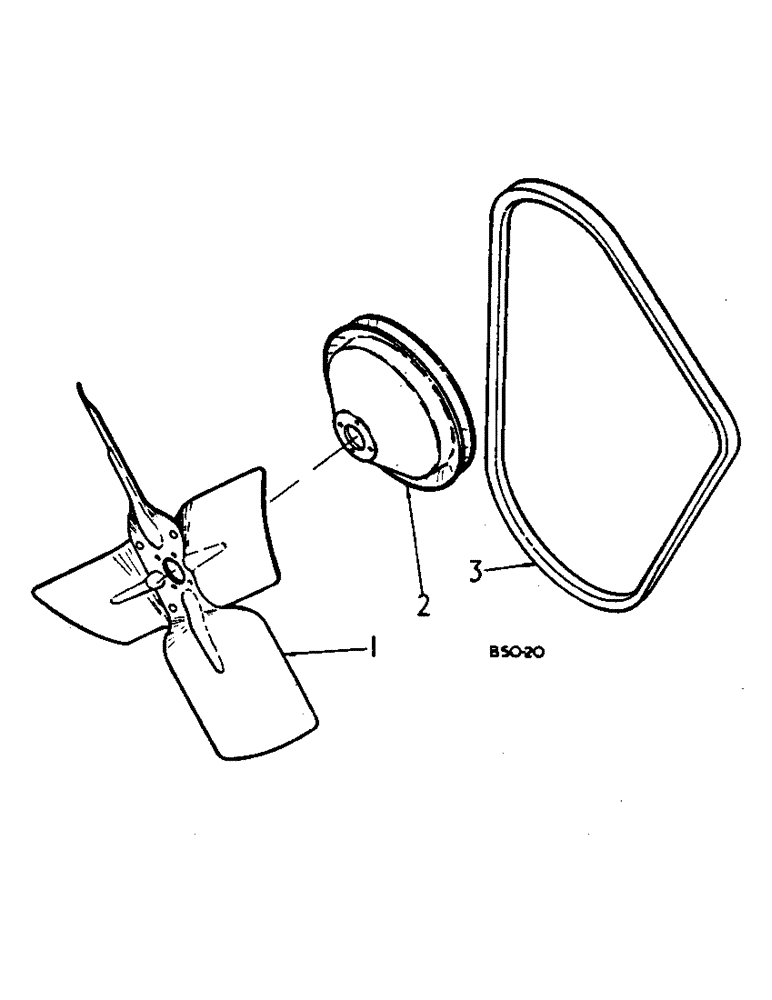

Запчасти Case IH 584 (06-03) - FAN Cooling

1

1275810C1

FAN

BLADE ASSY, fan, 5 blade replaces 527472R1, 4 blade

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1/4NF x 11/16 pln type 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

401124R2

PULLEY

water pump

1шт.

3

3129140R1

V-BELT,13.70 mm W

Fan, Replaces 527470R1 13.70 mm W

1шт.

3

1607227C1

V-BELT,62.50" L

Fan for Tractor wity Sims Cab Modification Having 75 Amp Alternator 62.50" L

1шт.
