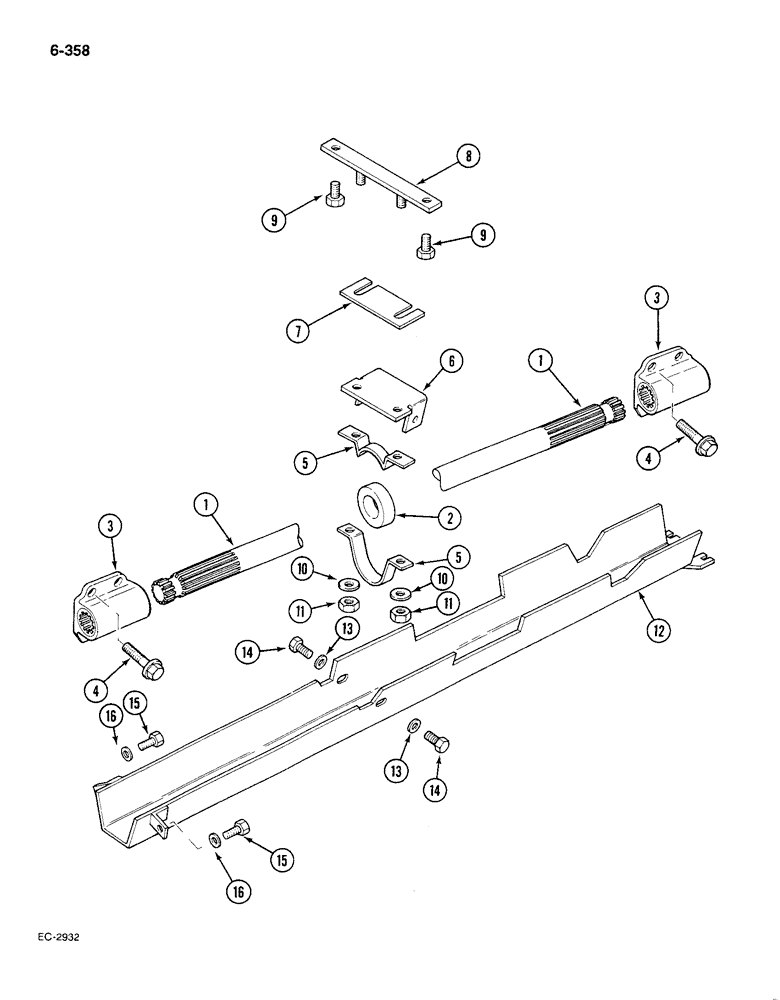

Запчасти Case IH 585 (6-358) - DRIVE SHAFT AND SHIELD, 4WD P.I.N. 18001 AND AFTER (06) - POWER TRAIN

1

90028C1

SHAFT

drive (use bearing 82235C91)

1шт.

1

1335030C1

DRIVE SHAFT

SHAFT drive (Replaces 90028C1: use bearing 82236C91)

1шт.

2

82235C91

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING ball (use with drive shaft 90028C1)

1шт.

2

82236C91

BEARING ASSY

ball (use with drive shaft 1335030C1)

1шт.

3

90031C2

SPLINED COUPLING,21T

COUPLING drive shaft

2шт.

4

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

hex, M12 x 45 mm

4шт.

5

82234C1

CLAMP

HOUSING bearing

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT drive shaft shield

1шт.

7

82228C1

SHIM

2.0 mm

1шт.

7

82227C1

SHIM

1.0 mm

1шт.

7

82226C1

SHIM

0.5 mm

1шт.

8

89485C3

BAR ASSY.

BAR support

1шт.

9

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

10

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

2шт.

11

30168R1

NUT,M10, Cl 10

hex, M10, class 10

2шт.

12

82213C1

GUARD ASSY.

SHIELD drive shaft

1шт.

13

3058250R1

WASHER

plain, 8.5 x 20 x 1.5 mm

2шт.

14

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm x 20 mm, class 8.8

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

hex, M10 x 20 mm, class 8.8, ZND

2шт.

16

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

2шт.
