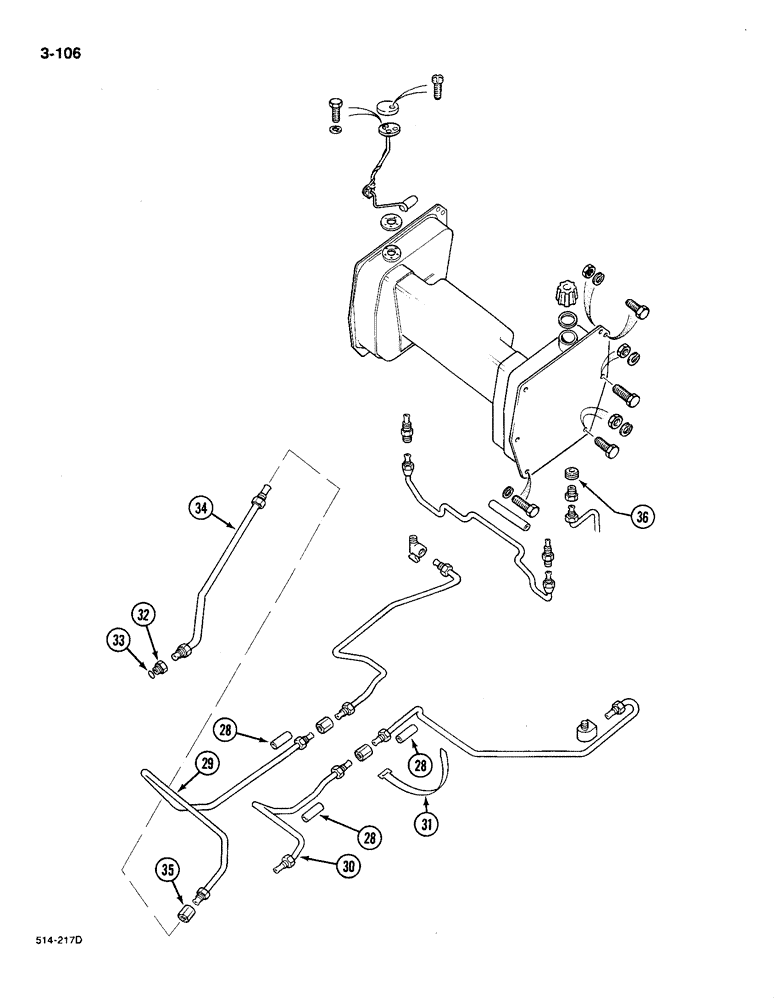

Запчасти Case IH 585 (3-106) - FUEL TANK AND PIPING, WITHOUT CAB CONTD (03) - FUEL SYSTEM

28

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

3шт.

29

3125866R1

PIPE ASSY.,7.92 mm OD, 1020, 119 mm Length

PIPE union to filter, Serial Range: -18001

1шт.

29

99837C1

PIPE

TUBE connector, Start Serial: 18001

1шт.

30

3112790R1

PIPE

fuel return, front

1шт.

31

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle

3шт.

32

3056600R1

ADAPTER

ADAPTOR filter, Start Serial: 18001

1шт.

33

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8, Start Serial: 18001

1шт.

34

99838C1

PIPE

TUBE connector to fuel filter, Start Serial: 18001

1шт.

35

442337

NUT

UNION inverted flared tube, 5/16 inch, Start Serial: 18001

1шт.

35

442395

FITTING

UNION inverted flared tube, 5/16 inch, Serial Range: (Optional-442337)

1шт.

36

538393R1

FILLER CAP

PLUG fuel tank vent pipe flange, used with vertical exhaust

1шт.
