(4-16) - HEADLIGHTS

Запчасти Case IH 595 (4-16) - HEADLIGHTS (04) - ELECTRICAL SYSTEMS

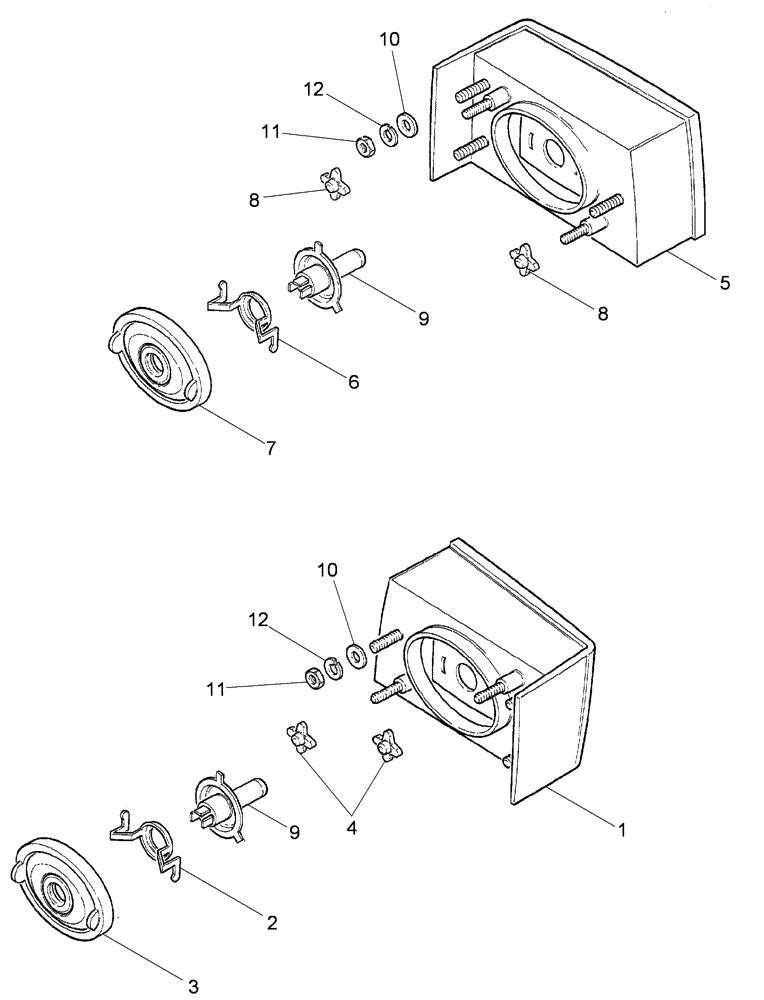

Схема запчастей Case IH 595 - (4-16) - HEADLIGHTS (04) - ELECTRICAL SYSTEMS
2
10
8
7
1
4
11
12
11
6
5
9
10
12
3
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1964881C2

HEADLIGHT

LIGHT - head, without bulb, right

1шт.

2

1983288C1

RETAINER

- bulb

1шт.

3

1983287C2

GASKET

- seal

1шт.

4

1983289C1

CLIP

ADJUSTER - thumb wheel

2шт.

5

1964882C2

HEADLIGHT

LIGHT - head, without bulb, left

1шт.

6

1983288C1

RETAINER

- bulb

1шт.

7

1983287C2

GASKET

- seal

1шт.

8

1983289C1

CLIP

ADJUSTER - thumb wheel

2шт.

REF # 8 ADJUSTER IS PICTURED WRONG. IT DOES NOT HAVE A STUD. REFER TO 395 PARTS BOOK 4-12 AND IT SHOWS THE ADJUSTER BY ITSELF.

1шт.

9

91967C1

BULB

LAMP - halogen, clear, 12 volt

2шт.

10

3233327R1

WASHER

- flat

6шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.
