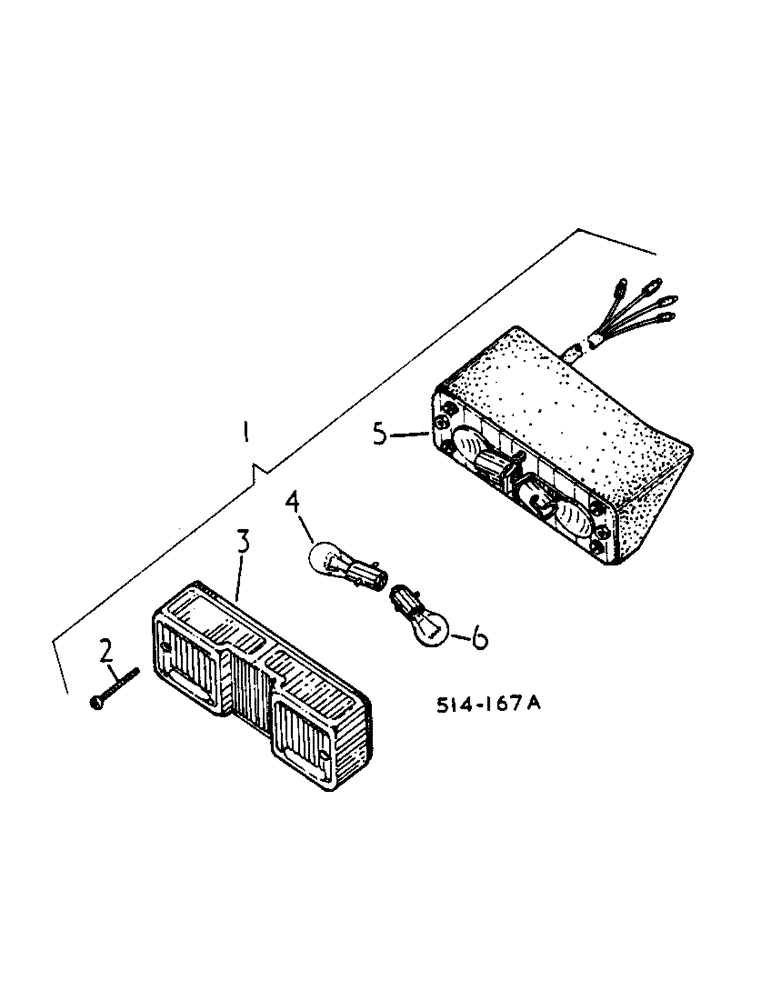

Запчасти Case IH 674 (08-21[A]) - FENDER WIRING & SIDE/FLASHER LIGHTS, FOR MACHINES WITH FLAT TOP FENDERS, SAFETY CAB OR SAFETY FRAME (06) - ELECTRICAL

3113666R92

LAMP

side and flasher L.H.

1шт.

3113667R92

LAMP BASE

side and flasher R.H.

1шт.

1

3112785R1

SCREW

48A X 1-1/2 zinc pltd

4шт.

2

3113395R1

LENS

clear/amber

2шт.

3

3118024R1

LAMP

12V 5W festoon

1шт.

3

3113360R1

SPARE PART

LAMP, 14V 7W bulb, as required

2шт.

4

3112786R1

WASHER

RING, retaining

4шт.

5

CUSHION, black rubber L.H.

2шт.

5

CUSHION, black rubber R.H.

2шт.

6

3025210R91

BULB

LAMP, 12V 21W SCC

2шт.

3113658R91

HARNESS

fender L.H., not illustrated

1шт.

3113659R91

HARNESS

fender R.H., not illustrated

1шт.

708114R1

SPARE PART cable, not illustrated

1шт.

530043R1

GROMMET

fender harness, not illustrated

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way L.H. fender, not illustrated

7шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 way R.H. fender, not illustrated

9шт.
