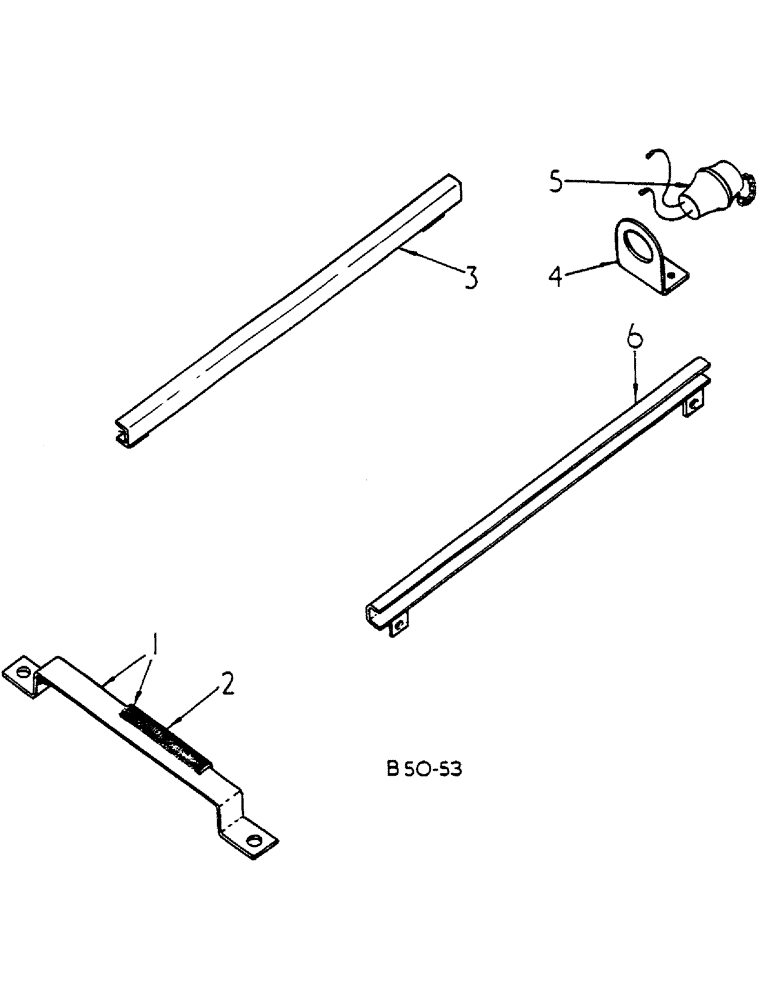

Запчасти Case IH 684 (08-034) - FENDER CONDUIT AND 2-PIN SOCKET, MACHINES NOT FITTED WITH CAB (06) - ELECTRICAL

1

3123177R91

SUPPORT ASSY.

CABLE HARNESS W/MOULDING 3109490R1

1шт.

2

3109490R1

X

MOULDING, EDGE

1шт.

3

3123179R1

CABLE SHEATH

CONDUIT ASSY, FENDER R.H., INCLUDES SCREWS

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

4

709237R2

BRACKET

POWER SOCKET

1шт.

5

705271R91

SOCKET/RECEPTACLE

2-PIN

1шт.

6

3123179R1

CABLE SHEATH

CONDUIT ASSY, FENDER L.H., USED W/FLAT TOP FENDERS

1шт.

6

3123182R2

CABLE SHEATH

CONDUIT ASSY, FENDER L.H., USED W/CROWN TOP FENDERS, INCLUDES SCREWS

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

3125820R1

SLEEVE

PVC, FOR USE W/SUPPORT ASSY, CABLE HARNESS W/MOULDING 3109490R1, NOT ILLUSTRATED

2шт.
