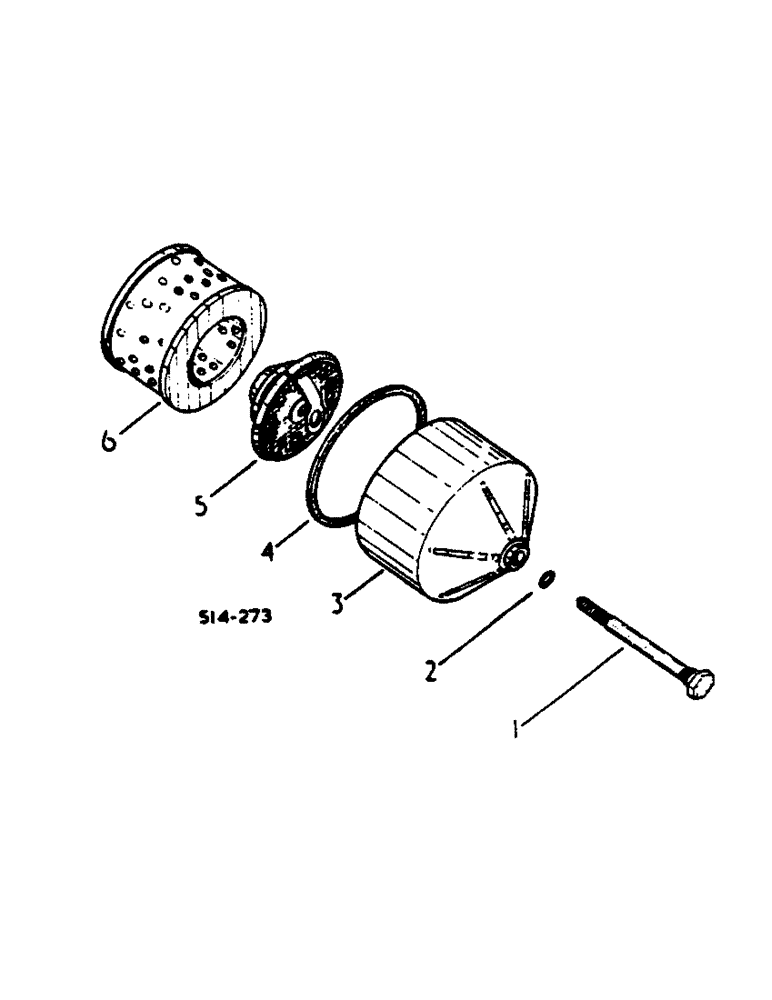

Запчасти Case IH 684 (10-07[A]) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

1

68202C1

BOLT

BOLT, center

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 5/8 x 3/32, filter case seal

1шт.

3

68209C1

CASE

SHELL ASSY, filter

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

5

405464R2

VALVE

AND SCREEN ASSY, by-pass

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT ASSY, not serviced separately, furnish oil filter element package

1шт.

530144R92

FILTER, ELEMENT

PACKAGE, oil filter element, service, 684 tractors, consists of

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

65126C92

ELEMENT

PACKAGE, oil filter element service, hydro 84 tractors, consist of

1шт.

401070R1

GASKET

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.
