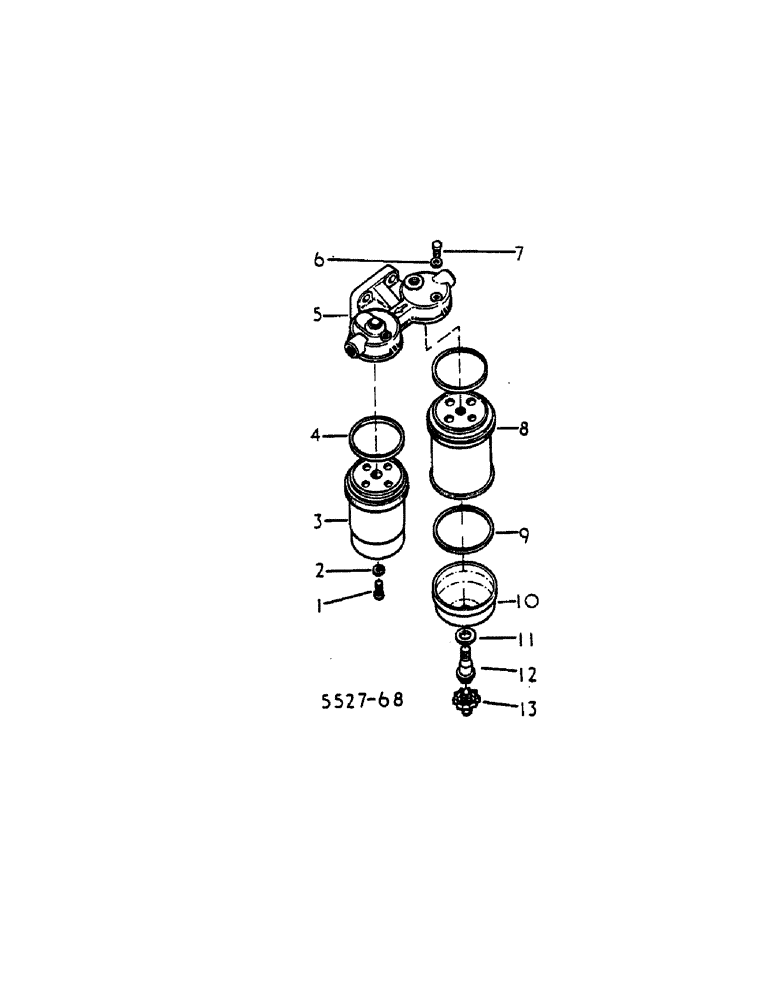

Запчасти Case IH 684 (12-39) - POWER, TWIN FUEL FILTER, BOSCH, HYDRO 84 WITH S/N 120521 AND ABOVE, 684 WITH S/N 66767 AND ABOVE Power

3218705R91

FILTER ASSY

twin fuel, Bosch, order 3218705R92

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

2шт.

1

3144780R1

SCREW

1шт.

2

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

1шт.

3

3218794R91

FILTER

ELEMENT, kit service, consists of element & ref. no. 2, 4 & 7

1шт.

4

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING, packing

2шт.

5

3218898R1

HEAD

filter

1шт.

6

757760R1

RING

packing

2шт.

7

3144780R1

SCREW

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT, kit, order kit 3218794R91

1шт.

9

3132191R1

RING

packing

1шт.

10

3132197R1

BOWL

glass

1шт.

11

3132192R1

RING

packing

1шт.

12

3132194R1

SCREW,M12 x 1.5 x 68mm

hollow

1шт.

13

3132196R1

SCREW

drain

1шт.
