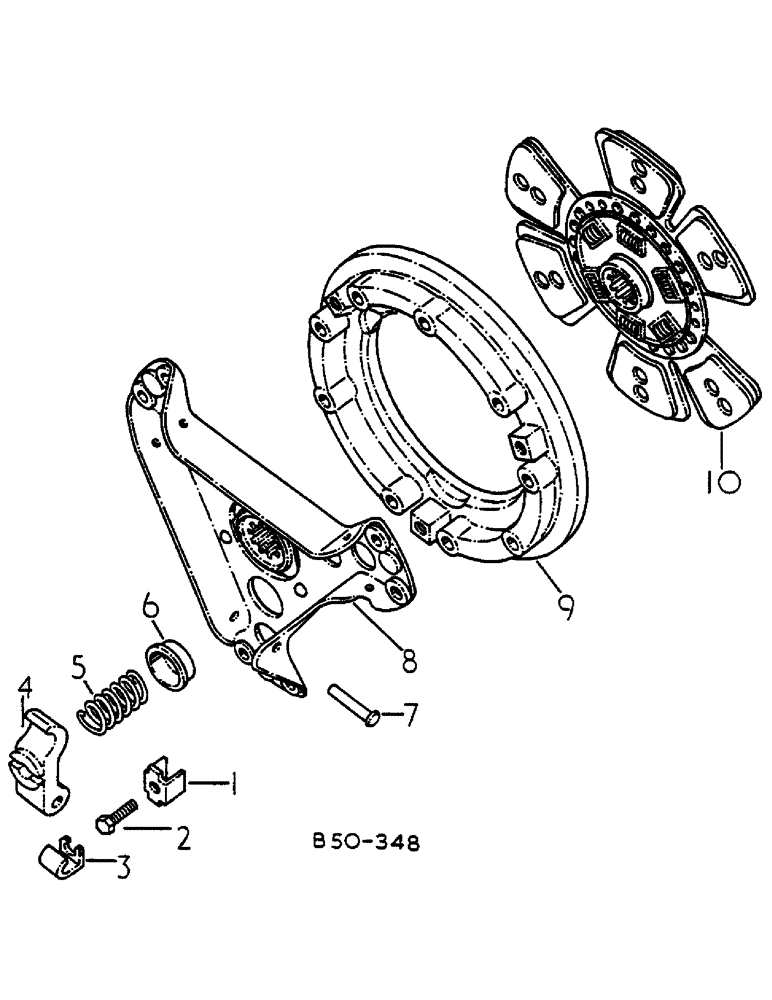

Запчасти Case IH 685 (07-050) - CLUTCH, 11 INCH, 684/8071 UP, 685/10000 UP (04) - Drive Train

1500655C91

COVER ASSY

CLUTCH PRESSURE PLATE, INCLUDES SCREWS AND WASHERS, CONSISTS OF REF. NOS. 1 - 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

2

69911C1

KIT

COVER PARTS WITH SCREW, CLIP, NUT AND WASHER

1шт.

2

1500653C1

KIT

COVER PARTS WITH SCREW, CLIP AND NUT

1шт.

NUT 5/16-24 HEX

3шт.

3

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

CUP, SPRING

3шт.

7

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET AND

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

3121507R93

CLUTCH DISC

CLUTCH DISK PLATE ASSY, DRIVE

1шт.

293248A1R

REMAN-CLUTCH DISC

685 SN 10000 & Aft., Reman For New P/N 3121507R93, N.A. Only

1шт.

293248A1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.
