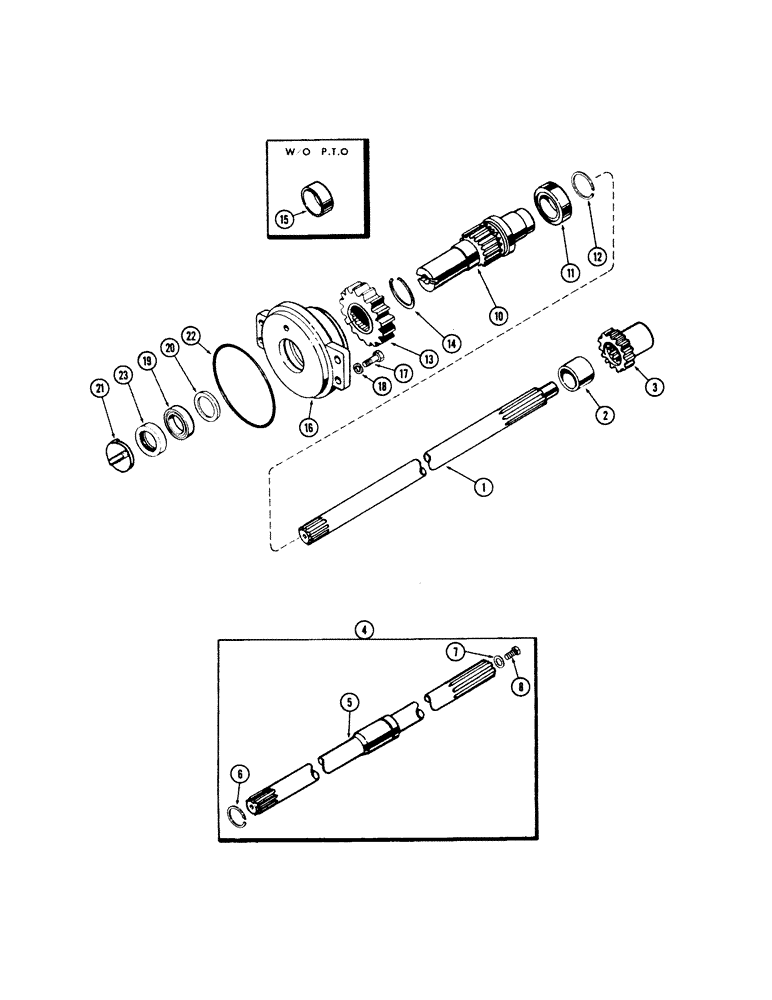

Запчасти Case IH 730 SERIES (316) - P.T.O AND HYDRAULIC PUMP DRIVE (06) - POWER TRAIN

1

A28232

SHAFT - P.T.O. and hydraulic pump drive (w/std.clutch)

1шт.

2

A28235

BUSHING

- P.T.O. & hyd. drive shaft (w/std. clutch.Part of range drive shaft)

1шт.

3

A28234

SLEEVE

- front (w/std. clutch)

1шт.

4

A23093

SHAFT KIT - P.T.O. and hyd. pump drive (w/COM ) (incl. ref. 5 - 8)

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - P.T.O. & hyd. pump drive (Order A23093)

1шт.

6

A21273

SEALING RING

RING - seal, shaft collar

1шт.

7

A22317

WASHER

- shaft front

1шт.

8

114-214

BOLT,Locking, 3/8" - 24 x 3/4", Gr 5

- lock, 3/8 x 3/4" N.C. hex (Nylock)

1шт.

10

A21260

SHAFT

- extension, P.T.O. and hyd. pump drive, Serial Range: -8174301

1шт.

10

A22955

X

SHAFT - extension, P.T.O. and hyd. pump drive, Start Serial: 8174301

1шт.

11

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - front, ext. shaft

1шт.

12

A27579

RING

- snap, Serial Range: bearing-shaft

1шт.

13

A21263

PINION - P.T.O. drive (540 RPM-17T)

1шт.

13

A21287

PINION - P.T.O. (1000 RPM-26T)

1шт.

14

A7339

RING

- snap, P.T.O. drive pinion

1шт.

15

A28204

SPACER (in place of pinion w/no P.T.O.)

1шт.

16

A21259

CARRIER - rear bearing, ext. shaft

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - rear, extension shaft

1шт.

20

A28241

SPACER - rear brg. and pinion

1шт.

21

A27376

COUPLING

- hyd. pump drive

1шт.

22

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

"O" RING - brg. carrier, Serial Range: -8173401

1шт.

23

A28238

OIL SEAL

SEAL - oil, rear, Serial Range: -8173401

1шт.
